Benefits
- With visual and audible alarms, Acknowledge button and switching output
- High energy efficiency: economical, powerful DC motor with high starting torque
- Service indicator for annual maintenance
- With power outage monitoring (with optional 9 V battery)
- Leak detector class I, EN 13160-1/-2
- Large supply voltage range (AC 100–240 V) for worldwide application
- Relay output for additional signalling devices, additional alarm units, event reporting systems or for integration into building control systems
- Version in protective housing (IP 65), available with heating and/or horn
Application
Class I vacuum type leak detector according to EN 13160-1/-2 for safe monitoring of double-walled tanks and single-walled tanks with inner lining for the unpressurised storage of water-polluting liquids with a flash point > 55 °C, also AdBlue® (urea solution 32.5 %) according to DIN 70070 or other media (e.g. used oil, hydraulic oil, cooling agent from grinding processes, brake fluid, etc.). The broad voltage range (AC 100–240 V) allows for application in a large variety of countries.
<div class="gallery-information">

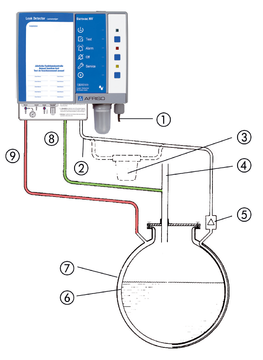

<b>Legend:</b>
<ol>
<li>Measuring line</li>
<li>Eurovac leak detector</li>
<li>Exhaust line</li>
<li>Liquid barrier</li>
<li>Suction line/suction line perforated</li>
<li>Inner lining</li>
<li>Intermediate layer (fleece)</li>
<li>Fastening ring</li>
</ol>
</div>
