Thermostatic actuator TSA 01

AFRISO Thermischer Stellantrieb TSA 01 M30x1,5 IG NC AC230V 90N 1m VOR 8830 object_image_99024imagemain_en

AFRISO Thermischer Stellantrieb TSA 01 M30x1,5 AG NC AC230V 90N 1m VOR 8840

AFRISO Thermischer Stellantrieb TSA 01 M30x1,5 IG NC AC230V 90N 1m SAL 8830

AFRISO Thermischer Stellantrieb TSA 01 M30x1,5 AG NC AC230V 90N 1m SAL 8840

AFRISO Thermischer Stellantrieb TSA 01 M30x1,5 IG NC AC230V 90N 1m BEF 8830

AFRISO Thermischer Stellantrieb TSA 01 M30x1,5 AG NC AC230V 90N 1m BEF 8840

Data sheet thermostatic actuator TSA 01

Benefits

Integrated stroke indicator
Slim design (Ø 39 mm)
Very low design for limited space conditions

Application

For controlling the hot water valves in radiators or AFRISO distribution manifolds such as ProCalida^® MC VA 1C. Actuators convert the electric signal they receive from room thermostats or thermostats with timers into a valve stroke to control the set temperature by means of the flow rate. The actuator is normally closed (NC) and thus immediately ready for automatic operation.

Versions

	Part no.	Remember
Thermostatic actuator TSA 01 AC230V M30x1,5 IG	79061
Thermostatic actuator TSA 01 AC230V M30x1,5 AG	79062

Blue part no. = in-stock items

Downloads

	Description	Format	Language	Download / Link
Data sheet thermostatic actuator TSA 01	Data sheet	PDF

Description

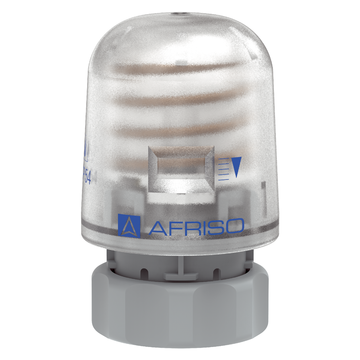

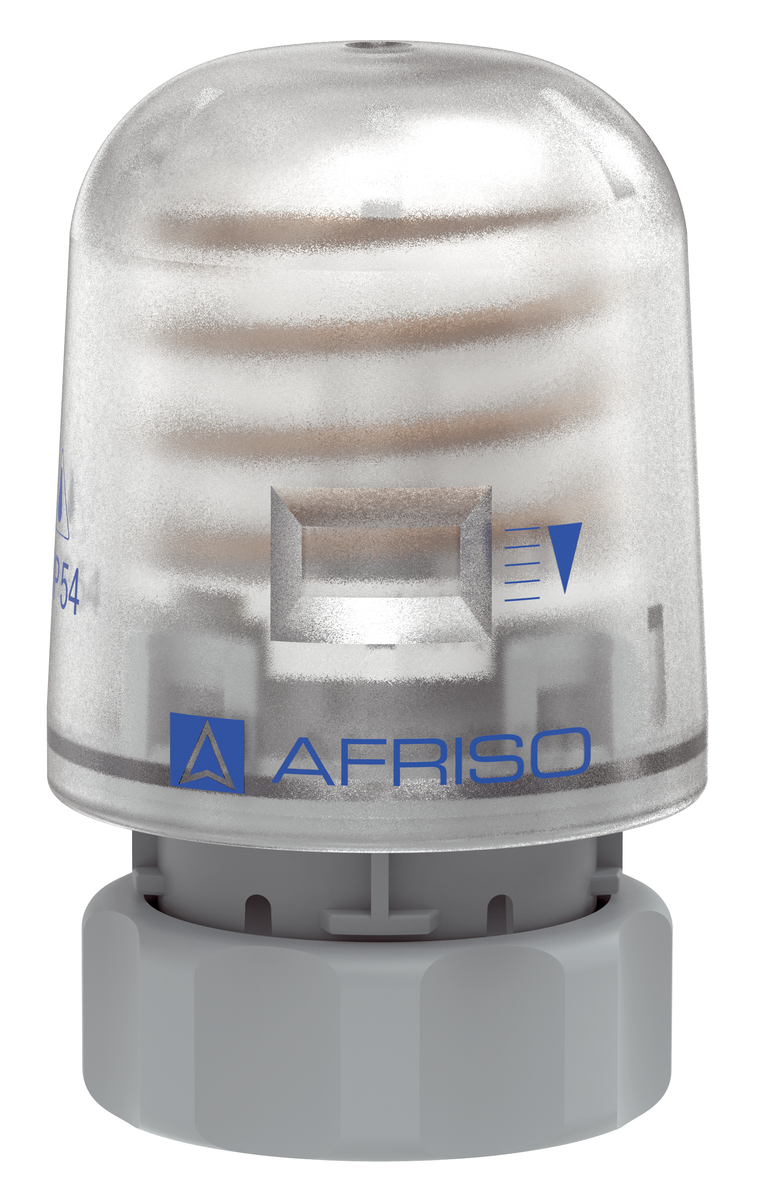

Electro-thermostatic actuator with integrated position indication in the cover window, connection cable and union nut for direct connection to the valve or upper part of the manifold. Closed when de-energised.

Technical data

Operating mode

Closed when de-energised (NC)

Stroke

> 3.2 mm

Opening time

5 – 6 min

Closing dimension

10.8 mm

Actuating force

Approx. 90 N

Connection

Part no. 79061:

Union nut M30 x 1.5 mm

Housing

Plastic

Degree of protection:

IP 54 (EN 60730-1)

White

Cable

Grey, H05
Length 1 m

Operating temperature range

Operation:

Max. 100 °C (at valve)

Ambient:

0/50 °C

Storage:

-25/+70 °C

Ambient humidity:

< 85 % rH, Non-condensing

Supply voltage

AC 230 V

Power input

Approx. 2 W

32.2 W

140 mA

Protection class

II (EN 60730-1)

Dimensions (H x ⌀)

Part no. 79061:

63 x 39 mm

Part no. 79062:

62 x 40 mm

Weight

109 g

Technical drawings

TSA-01 with female thread and union nut (part no. 79061)

TSA-01 with male thread (part no. 79062)
