Oil-on-water detector ÖAWD ÖAWD-8

AFRISO Öl-auf-Wasser-Detektor ÖAWD-8 VOR 74500 object_image_56278imagemain_en

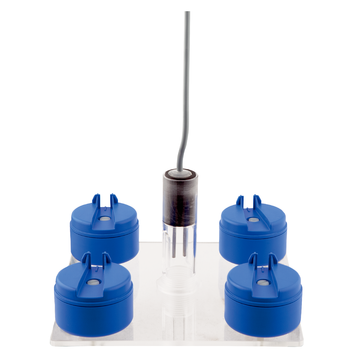

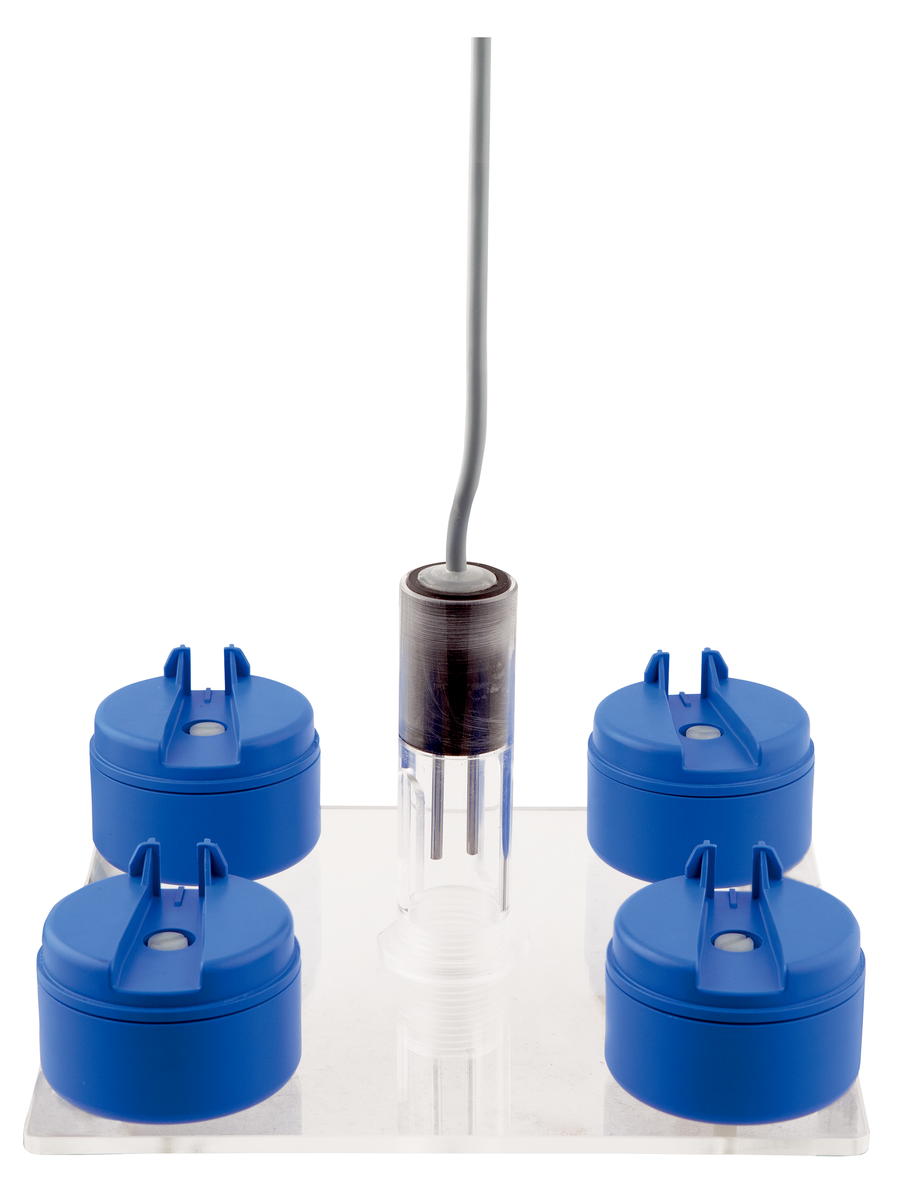

AFRISO Schwimmende Sonde SWS VOR 3680 78890 20080

AFRISO Öl-auf-Wasser-Detektor ÖAWD-8 SAL 74500

AFRISO Öl-auf-Wasser-Detektor ÖAWD-8 ANW 74500

Data sheet Oil-on-water detector ÖAWD ÖAWD-8

Benefits

For the detection of oil layers on water
Alarm unit on conductivity principle
With visual alarm, Test and Unlock pushbuttons
Relay output for additional alarm

Application

For visual and audible alarms in the event of oil layers on water. Especially suitable for catchment basins, floods and inspection ducts.

Versions

	Part no.	Remember
Oil-on-water detector ÖAWD ÖAWD-8	55105
Floating probe SWS	55100

Blue part no. = in-stock items

Downloads

	Description	Format
Data sheet Oil-on-water detector ÖAWD ÖAWD-8	Data sheet	PDF
WATCHDOG-LINE alarm units	Brochures	PDF
Oil-on-water detector ÖAWD	Declaration of Conformity	PDF

Description

Alarm unit in wall mounting housing for the detection of oil layers on water. ÖAWD consists of a control unit with visual/audible alarm, Test/Unlock buttons as well as a relay output. ÖAWD is based on the conductivity principle. The floating probe SWS is used for detection. If an oil layer (of at least 2 mm) is detected, the alarm unit triggers a visual alarm and stores the alarm condition. Once the cause of the alarm condition has been removed, press the Unlock button to reset ÖAWD. The visual alarm is deactivated. The Test key allows you to simulate an alarm condition in order to perform a function test. The voltage-free relay contact is provided for connection of additional signalling equipment (such as ZAG 01), actuators (pumps, valves), additional alarm units or event reporting systems. The alarm units are suitable for panel mounting with a mounting frame. A sealing kit (IP 54) is available for rough application conditions. ÖAWD-8 features a delay of 8 s which helps to avoid false alarms in applications with turbulent surfaces.

Technical data

Operating temperature range

Medium:

0/50 °C

Ambient:

0/55 °C

Storage:

-10/+60 °C

Floating probe SWS

W x H x D:

200 x 140 x 200 mm

Cable length:

10 m

Max. length:

50 m

Adjustment range oil layer thickness:

2/10 mm

Also suitable for changing levels

Supply voltage

AC 100 – 240 V

Nominal power

5 VA

Switching output

Relay contact:

1 x voltage-free changeover contact

Contact rating:

Max. AC 250 V, 2 A

Response delay

8 s

Housing

Wall mounting housing made of impact-resistant plastic (ABS)

W x H x D:

100 x 188 x 65 mm

Weight:

600 g

Degree of protection:

IP 40 (EN 60529)

Scope of delivery

Control unit without probe
