CO2, humidity and temperature determination AQ 35 / AQ 36

AFRISO Luftqualität CAPBs sens AQ 35 VOR 2730 object_image_81194imagemain_en AFRISO Luftqualität CAPBs sens AQ 35 VOR 2730 object_image_81194imagemain_en
Luftqualität CAPBs sens AQ 35
AFRISO Luftqualität CAPBs sens AQ 35 VOR 2730 object_image_81194imagemain_en
AFRISO Luftqualität CAPBs sens AQ 35 VOR 2730 object_image_81194imagemain_en
AFRISO CO2, Luftfeuchte, Temperatur CAPBs sens AQ 36 VOR 2740 AFRISO CO2, Luftfeuchte, Temperatur CAPBs sens AQ 36 VOR 2740
CO2, Luftfeuchte, Temperatur CAPBs sens AQ 36
AFRISO CO2, Luftfeuchte, Temperatur CAPBs sens AQ 36 VOR 2740
AFRISO Luftqualität CAPBs sens AQ 35 VOR 2730 object_image_81194imagemain_en
AFRISO CO2, Luftfeuchte, Temperatur CAPBs sens AQ 36 VOR 2740
Data sheet CO2, humidity and temperature determination AQ 35 / AQ 36
AFRISO Data sheet CO2, humidity and temperature determination AQ 35 / AQ 36

Application

  • CO2 concentration measurement and professional assessment of ambient air quality in rooms
  • Adjustment of ventilation and air conditioning systems as per EN 16798 (formerly EN 13779) or TRGS 900 (limit values for workplaces)
  • Sampling tests at workplaces in offices and production facilities, in laboratories, in storage areas, in greenhouses
  • Testing of stationary CO2 measuring instruments

Versions

Part no. Remember
Air quality / CO2 CAPBs® sens AQ 35 M090230010
Air quality / CO2 / humidity / temperature CAPBs® sens AQ 36 M090260010

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet CO2, humidity and temperature determination AQ 35 / AQ 36 Data sheet PDF
AFRISO Data sheet CO2, humidity and temperature determination AQ 35 / AQ 36

CAPBs® CO2 determination AQ 35

Sensor module for detection of carbon dioxide in ambient air. The integrated, highly accurate CO2 infrared sensor be adjusted in fresh air. Thanks to the possibility to conveniently enter the measuring time, it is possible to easily check and document given CO2 mean values. Meets the requirements of EN 50543 concerning measurement of CO2 in indoor air.

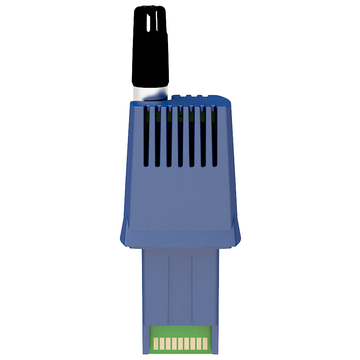

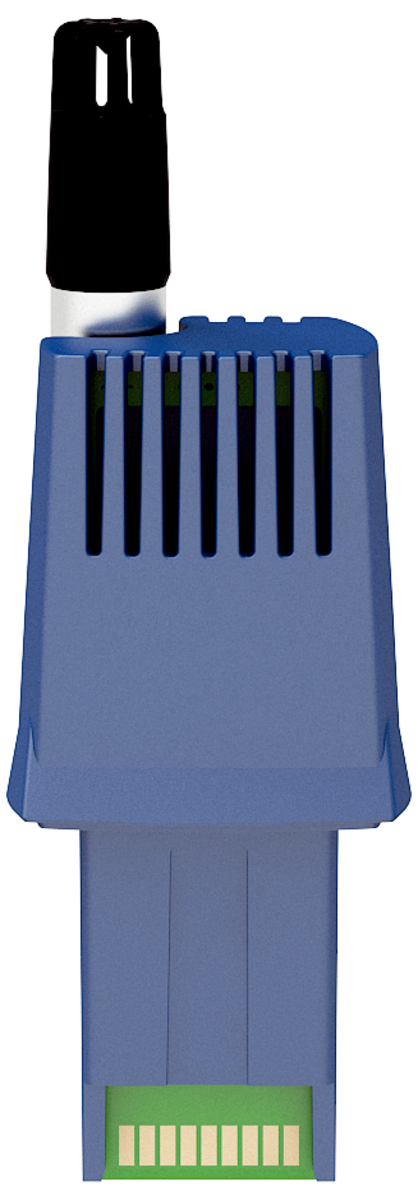

CAPBs® determination of CO2, humidity and temperature AQ 36

Multi-sensor module for detection of carbon dioxide in ambient air and measurement of humidity and temperature. The integrated, highly accurate CO2 infrared sensor be adjusted in fresh air. Thanks to the possibility to conveniently enter the measuring time, it is possible to easily check and document given CO2 mean values. Meets the requirements of EN 50543 concerning measurement of CO2 in indoor air.

AQ 35 AQ 36
Dimensions
W x H x D 42 x 83 x 35 mm 42 x 115 x 35 mm
Weight 50 g 58 g
Measuring range
CO2 0/10,000 ppm 0/10,000 ppm
relative humidity 0/100 % rH
temperature -40/+125 °C
Accuracy
CO2 ± 3 % of meas. value + 70 ppm (400–5,000 ppm) ± 3 % of meas. value + 70 ppm (400–5,000 ppm)
relative humidity ± 3 % rH at 25 °C
temperature ± 2 °C
Resolution
CO2 1 ppm 1 ppm
relative humidity 0.1 % rH
temperature 0.1 °C
