CAPBs^® water set ADS-WS sens

AFRISO CAPBs Wasser-Set ADS-WS sens VOR 3120 object_image_98361imagemain_en

Data sheet CAPBs^® water set ADS-WS sens

Benefits

Complete set for pressure tests at water pipes
Robust, modular system case S, suitable for box and shelf system Sortimo-Boxx
Wireless, immediate transmission of the measurement data to your AFRISO measuring instrument, smartphone or tablet with Bluetooth^® technology
Position-independent, temperature-compensated sensor technology for maximum precision in all measuring scenarios
Free app for EuroSoft live for operation of all CAPBs^® via smartphone and tablet. With pre-installed measurement menus for special applications and graphical representation of the measurement results

Application

Pressure tests at water pipes as per ZVSHK, BTGA and DIN EN 1264-4 with test medium water

Versions

	Part no.	Remember
CAPBs^® water set ADS-WS sens 2 x coupling DN 5, 1 x shut-off valve, 1 x plug-in nipple DN 5	P00118

Blue part no. = in-stock items

Downloads

	Description	Format	Language	Download / Link
Data sheet CAPBs^® water set ADS-WS sens	Data sheet	PDF

Description

Ready-to-be-used set in system case S pressure transmitter PT 70 (25 bar), connection accessories and test plug ½" with plug-in nipple. Flexible, uncomplicated connection to the pipe sections to be tested by means of standardised quick-action coupling system.

Technical data

Dimensions (W x H x D)

Sensor module:

42 x 74 x 35 mm

Case:

260 x 63 x 155 mm

Measuring range

-1/+25 bar

Accuracy

± 0.5 % vom Messbereichsendwert ± 1 Digit

Resolution

0.1 bar

Hose connection

1 x Plug connector DN 5

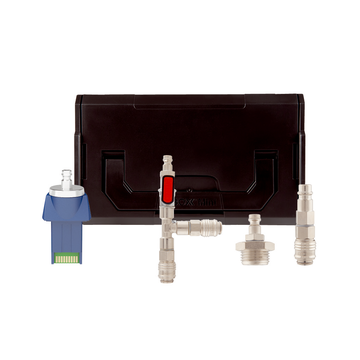

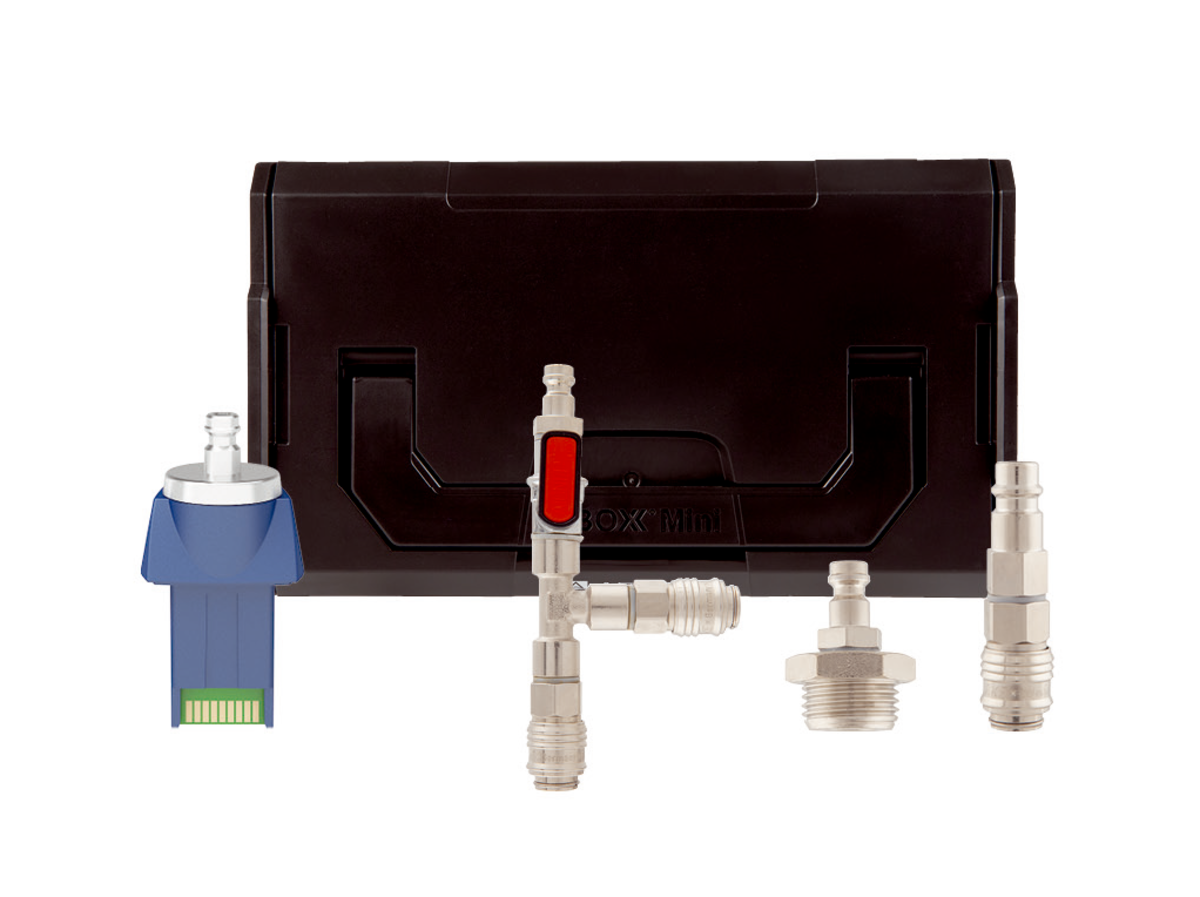

Scope of delivery

Pressure transmitter CAPBs® sens PT 70 (25 bar)
Test plug ½” with plug-in nipple
T connector (2 x coupling DN 5, 1 x shut-off valve, 1 x plug-in nipple DN 5)
Adapter for compressor connection (1 x coupling DN 5, 1 x plug-in nipple DN 7.2)
System case S

CAPBs® water set ADS-WS sens
