Diaphragm seal MD 56 NEUMO BioControl®

16260 16270 16280 16290 object_image_64461imagemain_en
VOR 16260 16270 16280 16290
SAL
ANW
BEF 16260 16270 16280 16290
Data sheet Diaphragm seal MD 56 NEUMO BioControl®
AFRISO Data sheet Diaphragm seal MD 56 NEUMO BioControl®

Benefits

  • Defined installation and press-fitting with metal stop
  • Medium cannot get behind the seal
  • SIP/CIP enabled

Application

Flange type diaphragm seal MD 56 for sterile process separation of pressure measuring and control units in pipes or tanks. For mounting to Bourdon tube pressure gauges, pressure transducers and pressure switches. For installation in sterile processes without dead spaces. Typical application areas:

Sterile applications in process engineering

Pharmaceutical industry

Biotechnology

Food and beverages industry

Beverage machines

Dairies

Breweries

Versions

Process connection Instrument connection Minimum range* (in bar) at nominal size Part no. Remember
63 100 160 DMU
D25 Welded connection 4 bar 4 bar 0.6 bar 0.6 bar 31410W
D50 Welded connection 0.6 bar 0.6 bar 0.6 bar 0.6 bar 31411W
D65 Welded connection 0.6 bar 0.6 bar 0.6 bar 0.6 bar 31412W
D80 Welded connection 0.6 bar 0.6 bar 0.6 bar 0.6 bar 31413W

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Diaphragm seal MD 56 NEUMO BioControl® Data sheet PDF
AFRISO Data sheet Diaphragm seal MD 56 NEUMO BioControl®
DMU 13 Vario Level indicators and level controllers PDF
AFRISO DMU 13 Vario
Measuring and control technology for hygienic processes Product range industrial technology PDF
AFRISO Measuring and control technology for hygienic processes
Enquiry chemical seals Product range industrial technology PDF
AFRISO Enquiry chemical seals
Enquiry chemical seals Checklists PDF
AFRISO Enquiry chemical seals
EHEDG certificate of compliance: Type EL - class I Certificates PDF
AFRISO EHEDG certificate of compliance: Type EL - class I
STP file (3D) MD56_31410W CAD file STP AFRISO STP file (3D) MD56_31410W
STP file (3D) MD56_31411W CAD file STP AFRISO STP file (3D) MD56_31411W
STP file (3D) MD56_31412W CAD file STP AFRISO STP file (3D) MD56_31412W
STP file (3D) MD56_31413W CAD file STP AFRISO STP file (3D) MD56_31413W
Fitting of / combination possibilities of AFRISO pressure gauges and chemical seals CAD filePressure measuring instruments PDF
AFRISO Fitting of / combination possibilities of AFRISO pressure gauges and chemical seals
All materials used are FDA-listed. Defined installation as per EHEDG hygienic design recommendations. The chemical seal and the measuring instrument are welded together, resulting in an inseparable single, shock- and vibration-resistant unit without external edges that might collect dirt. The chemical seals are available with nominal diameters 25, 50, 65, 80; due to their compact design, they are suitable for a wide range of applications.
Process connection
Stainless steel 316 L
NEUMO BioControl<sup>®</sup>
D25, D50, D65, D80
Diaphragm
Stainless steel 316 L
Material (wetted parts)
Stainless steel 316 L, EPDM
USP CLASS VI classified, FDA-listed
Surface roughness R<sub>A</sub>
≤ 0.8 µm
Seal
EPDM
Instrument connection
Welded connection
Pressure transmission liquid
Paraffin oil (FM 09), FDA-listed
Pressure range
See overview of versions
Can be mounted to
  • Bourdon tube pressure gauges NG 50, 63, 80, 100, 160
  • Pressure transducers (DMU)
  • Pressure switches (DS)

Options

  • Other materials
  • Electropolished
  • Cooling element
  • Capillary
  • Other filling liquids
  • Accessories such as housing, block flange and seals
Click the corresponding image for detail views, additional information and dimension tables.

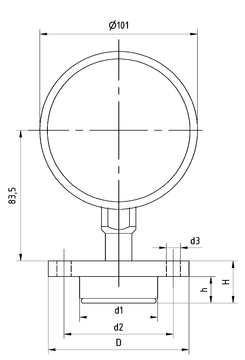

Pressure gauge NG 100 with MD 56
AFRISO
Pressure gauge NG 100 with MD 56
AFRISO
Dimensions (mm):
Anschluss D d1 d2 d3 H h
BioControll® D25 64 30,4 50 4 x ⌀ 7 20 11
BioControll® D50 90 49,9 70 4 x ⌀ 9 27 17
BioControll® D65 120 67,9 95 4 x ⌀ 11 27 17
BioControll® D80 140 87,4 115 4 x ⌀ 11 37 25

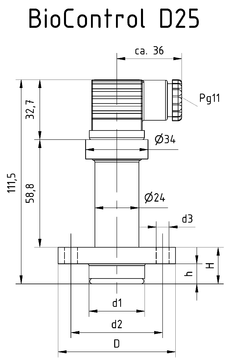

Pressure transducer DMU 02 Vario BC
AFRISO
Pressure transducer DMU 02 Vario BC
AFRISO
Dimensions (mm):
Anschluss D d1 d2 d3 H h
BioControll® D25 64 30,4 50 4 x ⌀ 7 20 11
BioControll® D50 90 49,9 70 4 x ⌀ 9 27 17
BioControll® D65 120 67,9 95 4 x ⌀ 11 27 17
BioControll® D80 140 87,4 115 4 x ⌀ 11 37 25
