Data sheet Standard Bourdon tube pressure gauges Type D2

Benefits

For pneumatic and heating system applications (NG 40 - 50 - 63)
For domestic technology and mechanical engineering applications (NG 80 - 100 - 160)
Robust steel housing
Window with adjustable reference pointer (NG 80 - 100)
With reference pointer on dial (NG 160)
Accuracy class 1.6
Many customised versions available

Application

For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys.

! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2"!

Versions

RF40 D201

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	-1/0 bar	RF40 D201	85001201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/1 bar	RF40 D201	85010201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/1.6 bar	RF40 D201	85011201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/2.5 bar	RF40 D201	85012201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/4 bar	RF40 D201	85013201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/6 bar	RF40 D201	85014201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/10 bar	RF40 D201	85015201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/16 bar	RF40 D201	85016201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/25 bar	RF40 D201	85017201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/40 bar	RF40 D201	85018201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/60 bar	RF40 D201	85019201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/100 bar	RF40 D201	85020201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/160 bar	RF40 D201	85021201
40 mm	G⅛B	Bottom	Sheet steel, black	1,6	0/250 bar	RF40 D201	85022201

Blue part no. = in-stock items

RF50 D201

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
50 mm	G¼B	Bottom	Sheet steel, black	1,6	-1/0 bar	RF50 D201	85051201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/1 bar	RF50 D201	85060201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/1.6 bar	RF50 D201	85061201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/2.5 bar	RF50 D201	85062201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/4 bar	RF50 D201	85063201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/6 bar	RF50 D201	85064201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/10 bar	RF50 D201	85065201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/16 bar	RF50 D201	85066201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/25 bar	RF50 D201	85067201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/40 bar	RF50 D201	85068201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/60 bar	RF50 D201	85069201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/100 bar	RF50 D201	85070201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/160 bar	RF50 D201	85071201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/250 bar	RF50 D201	85072201
50 mm	G¼B	Bottom	Sheet steel, black	1,6	0/400 bar	RF50 D201	85073201

Blue part no. = in-stock items

RF63 D201

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
63 mm	G¼B	Bottom	Sheet steel, black	1,6	-1/0 bar	RF63 D201	85101201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	-1/+0.6 bar	RF63 D201	85102201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	-1/+1.5 bar	RF63 D201	85103201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	-1/+3 bar	RF63 D201	85104201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	-1/+5 bar	RF63 D201	85105201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	-1/+9 bar	RF63 D201	85106201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	-1/+15 bar	RF63 D201	85107201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/0.6 bar	RF63 D201	85109201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/1 bar	RF63 D201	85110201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/1.6 bar	RF63 D201	85111201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/2.5 bar	RF63 D201	85112201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/4 bar	RF63 D201	85113201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/6 bar	RF63 D201	85114201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/10 bar	RF63 D201	85115201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/16 bar	RF63 D201	85116201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/25 bar	RF63 D201	85117201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/40 bar	RF63 D201	85118201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/60 bar	RF63 D201	85119201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/100 bar	RF63 D201	85120201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/160 bar	RF63 D201	85121201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/250 bar	RF63 D201	85122201
63 mm	G¼B	Bottom	Sheet steel, black	1,6	0/400 bar	RF63 D201	85123201

Blue part no. = in-stock items

RF80 D201

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
80 mm	G½B	Bottom	Sheet steel, black	1,6	-1/0 bar	RF80 D201	85151201
80 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+0.6 bar	RF80 D201	85152201
80 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+1.5 bar	RF80 D201	85153201
80 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+3 bar	RF80 D201	85154201
80 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+5 bar	RF80 D201	85155201
80 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+9 bar	RF80 D201	85156201
80 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+15 bar	RF80 D201	85157201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/0.6 bar	RF80 D201	85159201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/1 bar	RF80 D201	85160201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/1.6 bar	RF80 D201	85161201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/2.5 bar	RF80 D201	85162201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/4 bar	RF80 D201	85163201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/6 bar	RF80 D201	85164201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/10 bar	RF80 D201	85165201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/16 bar	RF80 D201	85166201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/25 bar	RF80 D201	85167201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/40 bar	RF80 D201	85168201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/60 bar	RF80 D201	85169201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/100 bar	RF80 D201	85170201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/160 bar	RF80 D201	85171201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/250 bar	RF80 D201	85172201
80 mm	G½B	Bottom	Sheet steel, black	1,6	0/400 bar	RF80 D201	85173201

Blue part no. = in-stock items

RF100 D201

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
100 mm	G½B	Bottom	Sheet steel, black	1,6	-1/0 bar	RF100 D201	85201201
100 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+0.6 bar	RF100 D201	85202201
100 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+1.5 bar	RF100 D201	85203201
100 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+3 bar	RF100 D201	85204201
100 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+5 bar	RF100 D201	85205201
100 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+9 bar	RF100 D201	85206201
100 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+15 bar	RF100 D201	85207201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/0.6 bar	RF100 D201	85209201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/1 bar	RF100 D201	85210201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/1.6 bar	RF100 D201	85211201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/2.5 bar	RF100 D201	85212201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/4 bar	RF100 D201	85213201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/6 bar	RF100 D201	85214201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/10 bar	RF100 D201	85215201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/16 bar	RF100 D201	85216201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/25 bar	RF100 D201	85217201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/40 bar	RF100 D201	85218201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/60 bar	RF100 D201	85219201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/100 bar	RF100 D201	85220201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/160 bar	RF100 D201	85221201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/250 bar	RF100 D201	85222201
100 mm	G½B	Bottom	Sheet steel, black	1,6	0/400 bar	RF100 D201	85223201

Blue part no. = in-stock items

RF160 D201

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
160 mm	G½B	Bottom	Sheet steel, black	1,6	-1/0 bar	RF160 D201	85251201
160 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+0.6 bar	RF160 D201	85252201
160 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+1.5 bar	RF160 D201	85253201
160 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+3 bar	RF160 D201	85254201
160 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+5 bar	RF160 D201	85255201
160 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+9 bar	RF160 D201	85256201
160 mm	G½B	Bottom	Sheet steel, black	1,6	-1/+15 bar	RF160 D201	85257201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/0.6 bar	RF160 D201	85259201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/1 bar	RF160 D201	85260201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/1.6 bar	RF160 D201	85261201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/2.5 bar	RF160 D201	85262201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/4 bar	RF160 D201	85263201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/6 bar	RF160 D201	85264201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/10 bar	RF160 D201	85265201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/16 bar	RF160 D201	85266201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/25 bar	RF160 D201	85267201
160 mm	G½B	Bottom	Sheet steel, black	1,6	0/40 bar	RF160 D201	85268201

Blue part no. = in-stock items

RF40 D211

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF40 D211	85001211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/1 bar	RF40 D211	85010211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF40 D211	85011211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF40 D211	85012211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/4 bar	RF40 D211	85013211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/6 bar	RF40 D211	85014211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/10 bar	RF40 D211	85015211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/16 bar	RF40 D211	85016211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/25 bar	RF40 D211	85017211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/40 bar	RF40 D211	85018211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/60 bar	RF40 D211	85019211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/100 bar	RF40 D211	85020211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/160 bar	RF40 D211	85021211
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/250 bar	RF40 D211	85022211

Blue part no. = in-stock items

RF50 D211

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
50 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF50 D211	85051211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1 bar	RF50 D211	85060211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF50 D211	85061211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF50 D211	85062211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/4 bar	RF50 D211	85063211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/6 bar	RF50 D211	85064211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/10 bar	RF50 D211	85065211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/16 bar	RF50 D211	85066211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/25 bar	RF50 D211	85067211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/40 bar	RF50 D211	85068211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/60 bar	RF50 D211	85069211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/100 bar	RF50 D211	85070211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/160 bar	RF50 D211	85071211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/250 bar	RF50 D211	85072211
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/400 bar	RF50 D211	85073211

Blue part no. = in-stock items

RF63 D211

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF63 D211	85101211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+0.6 bar	RF63 D211	85102211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+1.5 bar	RF63 D211	85103211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+3 bar	RF63 D211	85104211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+5 bar	RF63 D211	85105211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+9 bar	RF63 D211	85106211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+15 bar	RF63 D211	85107211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/0.6 bar	RF63 D211	85109211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1 bar	RF63 D211	85110211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF63 D211	85111211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF63 D211	85112211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/4 bar	RF63 D211	85113211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/6 bar	RF63 D211	85114211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/10 bar	RF63 D211	85115211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/16 bar	RF63 D211	85116211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/25 bar	RF63 D211	85117211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/40 bar	RF63 D211	85118211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/60 bar	RF63 D211	85119211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/100 bar	RF63 D211	85120211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/160 bar	RF63 D211	85121211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/250 bar	RF63 D211	85122211
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/400 bar	RF63 D211	85123211

Blue part no. = in-stock items

RF100 D211

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
100 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF100 D211	85201211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+0.6 bar	RF100 D211	85202211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+1.5 bar	RF100 D211	85203211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+3 bar	RF100 D211	85204211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+5 bar	RF100 D211	85205211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+9 bar	RF100 D211	85206211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+15 bar	RF100 D211	85207211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/0.6 bar	RF100 D211	85209211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1 bar	RF100 D211	85210211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF100 D211	85211211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF100 D211	85212211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/4 bar	RF100 D211	85213211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/6 bar	RF100 D211	85214211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/10 bar	RF100 D211	85215211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/16 bar	RF100 D211	85216211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/25 bar	RF100 D211	85217211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/40 bar	RF100 D211	85218211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/60 bar	RF100 D211	85219211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/100 bar	RF100 D211	85220211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/160 bar	RF100 D211	85221211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/250 bar	RF100 D211	85222211
100 mm	G¼B	Centre back	Sheet steel, black	1,6	0/400 bar	RF100 D211	85223211

Blue part no. = in-stock items

RF40 D231

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF40 D231	85001231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/1 bar	RF40 D231	85010231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF40 D231	85011231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF40 D231	85012231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/4 bar	RF40 D231	85013231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/6 bar	RF40 D231	85014231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/10 bar	RF40 D231	85015231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/16 bar	RF40 D231	85016231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/25 bar	RF40 D231	85017231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/40 bar	RF40 D231	85018231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/60 bar	RF40 D231	85019231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/100 bar	RF40 D231	85020231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/160 bar	RF40 D231	85021231
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/250 bar	RF40 D231	85022231

Blue part no. = in-stock items

RF50 D231

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
50 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF50 D231	85051231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1 bar	RF50 D231	85060231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF50 D231	85061231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF50 D231	85062231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/4 bar	RF50 D231	85063231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/6 bar	RF50 D231	85064231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/10 bar	RF50 D231	85065231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/16 bar	RF50 D231	85066231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/25 bar	RF50 D231	85067231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/40 bar	RF50 D231	85068231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/60 bar	RF50 D231	85069231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/100 bar	RF50 D231	85070231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/160 bar	RF50 D231	85071231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/250 bar	RF50 D231	85072231
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/400 bar	RF50 D231	85073231

Blue part no. = in-stock items

RF63 D231

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF63 D231	85101231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+0.6 bar	RF63 D231	85102231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+1.5 bar	RF63 D231	85103231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+3 bar	RF63 D231	85104231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+5 bar	RF63 D231	85105231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+9 bar	RF63 D231	85106231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+15 bar	RF63 D231	85107231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/0.6 bar	RF63 D231	85109231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1 bar	RF63 D231	85110231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF63 D231	85111231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF63 D231	85112231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/4 bar	RF63 D231	85113231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/6 bar	RF63 D231	85114231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/10 bar	RF63 D231	85115231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/16 bar	RF63 D231	85116231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/25 bar	RF63 D231	85117231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/40 bar	RF63 D231	85118231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/60 bar	RF63 D231	85119231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/100 bar	RF63 D231	85120231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/160 bar	RF63 D231	85121231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/250 bar	RF63 D231	85122231
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/400 bar	RF63 D231	85123231

Blue part no. = in-stock items

RF40 D251

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF40 D251	85001251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/1 bar	RF40 D251	85010251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF40 D251	85011251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF40 D251	85012251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/4 bar	RF40 D251	85013251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/6 bar	RF40 D251	85014251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/10 bar	RF40 D251	85015251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/16 bar	RF40 D251	85016251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/25 bar	RF40 D251	85017251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/40 bar	RF40 D251	85018251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/60 bar	RF40 D251	85019251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/100 bar	RF40 D251	85020251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/160 bar	RF40 D251	85021251
40 mm	G⅛B	Centre back	Sheet steel, black	1,6	0/250 bar	RF40 D251	85022251

Blue part no. = in-stock items

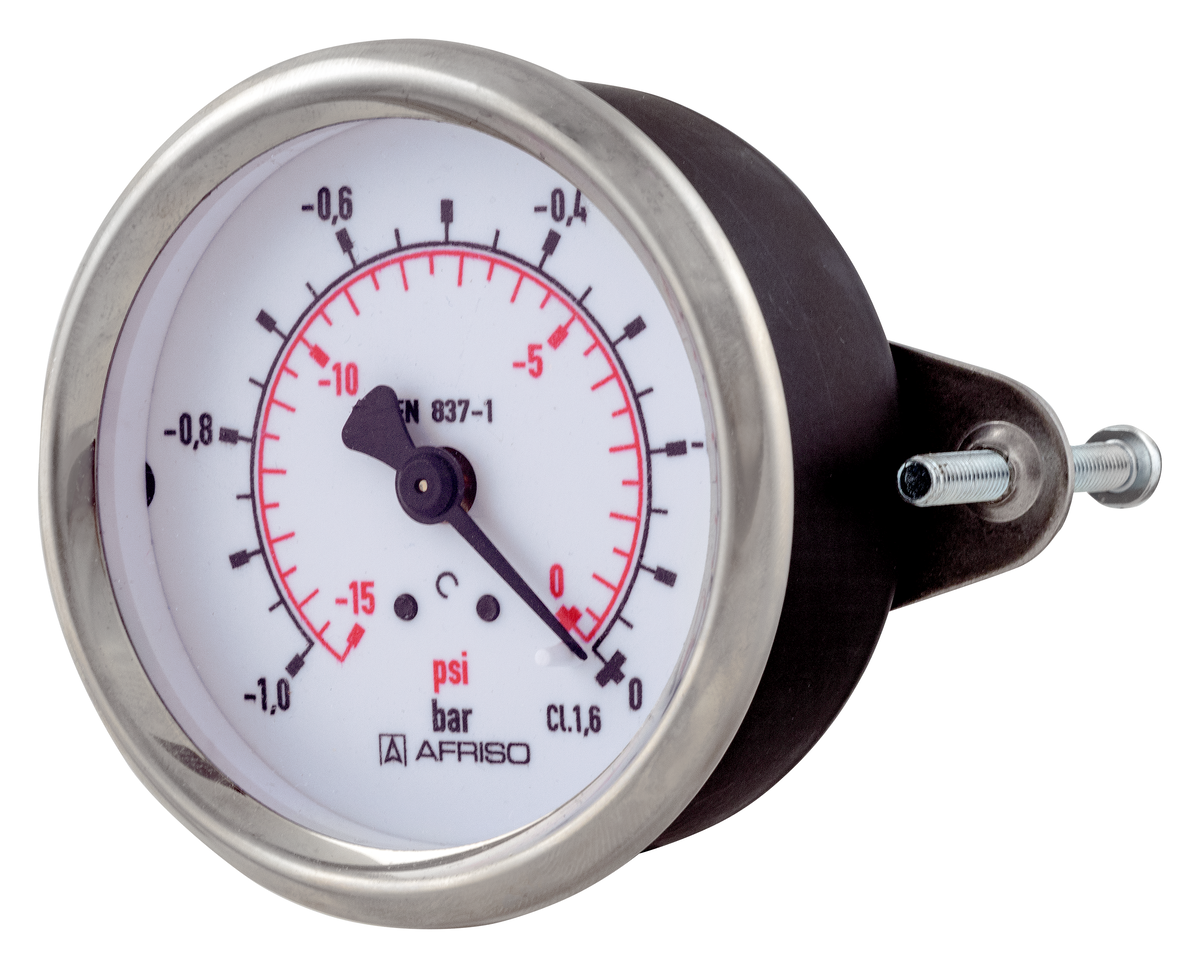

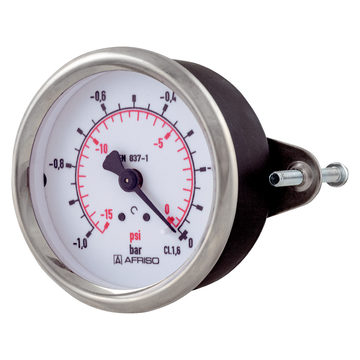

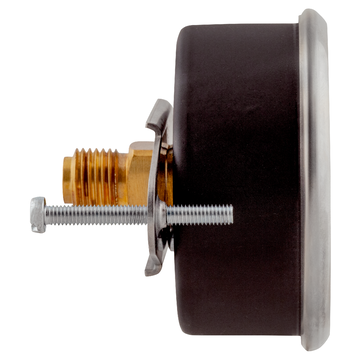

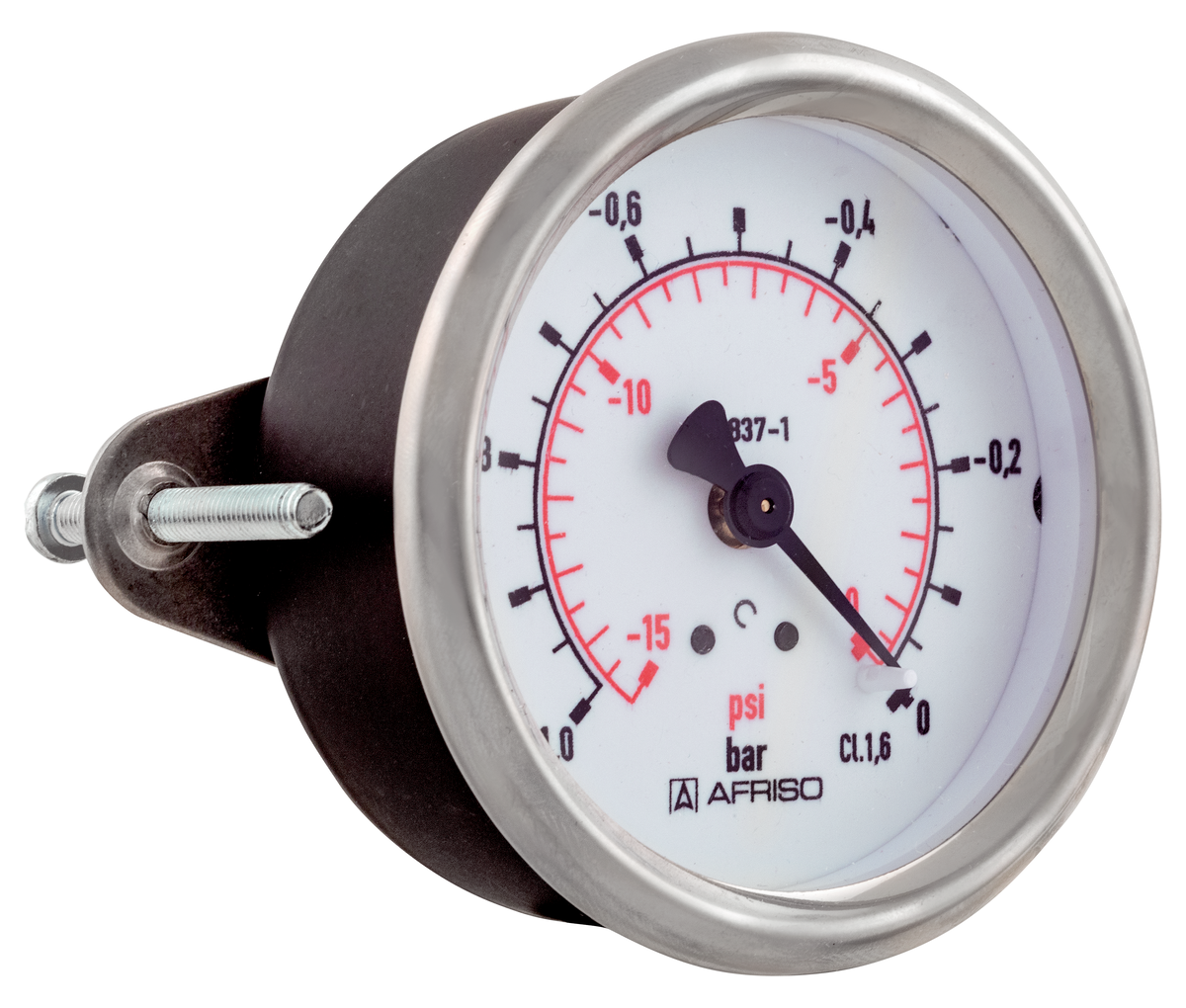

RF50 D251

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
50 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF50 D251	85051251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1 bar	RF50 D251	85060251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF50 D251	85061251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF50 D251	85062251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/4 bar	RF50 D251	85063251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/6 bar	RF50 D251	85064251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/10 bar	RF50 D251	85065251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/16 bar	RF50 D251	85066251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/25 bar	RF50 D251	85067251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/40 bar	RF50 D251	85068251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/60 bar	RF50 D251	85069251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/100 bar	RF50 D251	85070251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/160 bar	RF50 D251	85071251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/250 bar	RF50 D251	85072251
50 mm	G¼B	Centre back	Sheet steel, black	1,6	0/400 bar	RF50 D251	85073251

Blue part no. = in-stock items

RF63 D251

Housing ⌀	Connection	Alignment	Housing	Accuracy class	Range	Type	Part no.
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/0 bar	RF63 D251	85101251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+0.6 bar	RF63 D251	85102251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+1.5 bar	RF63 D251	85103251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+3 bar	RF63 D251	85104251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+5 bar	RF63 D251	85105251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+9 bar	RF63 D251	85106251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	-1/+15 bar	RF63 D251	85107251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/0.6 bar	RF63 D251	85109251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1 bar	RF63 D251	85110251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/1.6 bar	RF63 D251	85111251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/2.5 bar	RF63 D251	85112251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/4 bar	RF63 D251	85113251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/6 bar	RF63 D251	85114251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/10 bar	RF63 D251	85115251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/16 bar	RF63 D251	85116251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/25 bar	RF63 D251	85117251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/40 bar	RF63 D251	85118251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/60 bar	RF63 D251	85119251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/100 bar	RF63 D251	85120251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/160 bar	RF63 D251	85121251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/250 bar	RF63 D251	85122251
63 mm	G¼B	Centre back	Sheet steel, black	1,6	0/400 bar	RF63 D251	85123251

Blue part no. = in-stock items

Downloads

	Description	Format
Data sheet Standard Bourdon tube pressure gauges Type D2	Data sheet	PDF
Mounting of pressure gauge	Operating instructions	PDF
Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges RF...Ex, KP...Ex, PF...Ex	Operating instructions	PDF
Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure	Operating instructions	PDF
Pressure gauges	Checklists	PDF
Dials for pressure gauges – graduation	Technical information	PDF

Technical data

Type

Nominal size

40 – 50 – 63 – 80 – 100 – 160

Accuracy class (EN 837-1/6)

1,6

Ranges (EN 837-1/5)

See ordering table

Application area

Static load:

¾ x full scale value

Dynamic load:

⅔ x full scale value

Short-term:

Full scale value

Operating temperature range

Medium:

Max. 60 °C

Ambient:

-20/+60 °C

Temperature performance

Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
at rising temperature approx. ± 0.4 %/10 K
falling temperature approx. ± 0.4 %/10 K
of full scale value

Degree of protection

IP 32 (EN 60529)

Standard design

Connection

Brass, bottom or centre back

Measuring element

Bourdon tube, Copper alloy

≤ 60 bar:

"C" type tube

> 60 bar:

Helical tube

Movement

Brass

Dial

NG 40:

Plastic, white

NG 50:

Plastic, white

NG 63:

Plastic, white

NG 80:

Plastic, white

NG 100:

Plastic, white

NG 160:

Aluminium, white

Scaling

D201:

Black

D211:

Black

Scale

D231:

Dual scale, bar outer, black – psi inner, red

D251:

Dual scale, bar outer, black – psi inner, red

Pointer

NG 40:

Plastic, black

NG 50:

Plastic, black

NG 63:

Plastic, black

NG 80:

Plastic, black

NG 100:

Plastic, black

NG 160:

Aluminium, black

Housing

Sheet steel, black

Push on bezel

NG 160:

Sheet steel, black

Window

NG 40:

Plastic, clipped in

NG 50:

Plastic, clipped in

NG 63:

Plastic, clipped in

NG 80:

Plastic, clipped in, with adjustable red reference pointer

NG 100:

Plastic, clipped in, with adjustable red reference pointer

NG 160:

Instrument glass, with adjustable red reference pointer

Options

Panel mounting bezel
3-hole fixing, panel mounting bezel
Damping screw
Reference pointer
Special scales
Other process connections

Technical drawings

Click the corresponding image for detail views, additional information and dimension tables.

NG 40/50/63 – bottom connection

Dimensions (mm):

NG	a	b	∅c	c1	c2	G	h	s	SW
40	8,5	23,5	4	2	10	G⅛B	36	3	12
50	10,5	26	5	2	13	G¼B	45	3,8	14
63	9,5	29,4	5	2	13	G¼B	51,5	3,7	14

NG 80/100 – bottom connection

Dimensions (mm):

NG	a	b	∅c	c1	c2	G	h	SW
80	11,7	31	6	3	20	G½B	72	14
100	11	29,5	6	3	20	G½B	82	14

NG 160 – bottom connection, with push on bezel

Dimensions (mm):

NG	a	b	∅c	c1	c2	G	h	SW
160	15,5	50	6	3	20	G½B	116	22

NG 40/50/63 – centre back connection

Dimensions (mm):

NG	b1	∅c	c1	c2	g	G	s	SW
40	25	4	2	10	41,5	G⅛B	3	12
50	26	5	2	13	47	G¼B	3,8	14
63	29,4	5	2	13	50,4	G¼B	3,7	14

NG 80/100 – centre back connection

Dimensions (mm):

NG	b	∅c1	c3	c4	g	G1	SW1
80	31	6	2	13	54	G¼B	14
100	29,5	6	2	13	52,5	G¼B	14

NG 40/50/63 – centre back connection, 3-hole fixing, panel mounting bezel

Dimensions (mm):

NG	b2	∅c	c1	c2	d1	d2	d3	d4	d5	g1	G	s1	s2	SW
40	26	4	2	10	51	61	3,6	41	45	42,5	G⅛B	2,5	2	12
50	27,5	5	2	13	60	71	3,6	50	54	49	G¼B	2,5	2	14
63	30,3	5	2	13	75	85	3,6	63	66,5	51,3	G¼B	2,5	2	14

NG 40/50/63 – centre back connection, panel mounting bezel with clamp fixing

Dimensions (mm):

NG	b3	c2	d6	g2	G	m	s3	SW
40	28	10	44	46,6	G⅛B	50	5,2	12
50	30,3	13	54	51,3	G¼B	45	5,4	14
63	30,3	13	67,8	53,3	G¼B	51,5	5,6	14
