Spring-diaphragm pressure gauges for chemical applications for differential pressure - overload protected

59580 object_image_81970imagemain_en
VOR 59580
SAL 59670 59680 59690 59710 59720 59730 59740 59750 59760 59770 59780
SAR 59580
SAS 59580
ILL 59670 59680 59690 59710 59720 59730 59740 59750 59760 59770 59780 59840 59850 59860 59880 59890 59900 59910 59920 59930 59940 59950 59970 59980 59990 60010 60020 60030 60040 60050 60060 60070 60080
Data sheet Spring-diaphragm pressure gauges for chemical applications for differential pressure - overload protected
AFRISO Data sheet Spring-diaphragm pressure gauges for chemical applications for differential pressure - overload protected

Benefits

  • Direct indication of the differential pressure
  • High overload protection
  • Compact design
  • High resistance to chemicals
  • Electrical contacts optional

Application

For differential pressure measurement at low differential pressure and high static pressure. For corrosive gaseous and liquid media which are not highly viscous, also for use in corrosive environments. Particularly suitable for monitoring filters, pumps and pipe systems.

Versions

Housing ⌀ Housing Accuracy class Connection Range Type Part no. Remember
100 mm Stainless steel 304 2,5 2 x G½B 0/250 mbar MF100ChDif D402 88086402
100 mm Stainless steel 304 2,5 2 x G½B 0/400 mbar MF100ChDif D402 88087402
100 mm Stainless steel 304 2,5 2 x G½B 0/600 mbar MF100ChDif D402 88088402
100 mm Stainless steel 304 2,5 2 x G½B 0/1 bar MF100ChDif D402 88089402
100 mm Stainless steel 304 2,5 2 x G½B 0/1.6 bar MF100ChDif D402 88090402
100 mm Stainless steel 304 2,5 2 x G½B 0/2.5 bar MF100ChDif D402 88091402
100 mm Stainless steel 304 2,5 2 x G½B 0/4 bar MF100ChDif D402 88092402
100 mm Stainless steel 304 2,5 2 x G½B 0/6 bar MF100ChDif D402 88093402

Blue part no. = in-stock items

Housing ⌀ Housing Accuracy class Connection Range Type Part no. Remember
100 mm Stainless steel 304 2,5 2 x G½B 0/250 mbar MFW100ChDif D402 88106402
100 mm Stainless steel 304 2,5 2 x G½B 0/400 mbar MFW100ChDif D402 88107402
100 mm Stainless steel 304 2,5 2 x G½B 0/600 mbar MFW100ChDif D402 88108402
100 mm Stainless steel 304 2,5 2 x G½B 0/1 bar MFW100ChDif D402 88109402
100 mm Stainless steel 304 2,5 2 x G½B 0/1.6 bar MFW100ChDif D402 88110402
100 mm Stainless steel 304 2,5 2 x G½B 0/2.5 bar MFW100ChDif D402 88111402
100 mm Stainless steel 304 2,5 2 x G½B 0/4 bar MFW100ChDif D402 88112402
100 mm Stainless steel 304 2,5 2 x G½B 0/6 bar MFW100ChDif D402 88113402
100 mm Stainless steel 304 2,5 2 x G½B 0/10 bar MFW100ChDif D402 88114402
100 mm Stainless steel 304 2,5 2 x G½B 0/16 bar MFW100ChDif D402 88115402
100 mm Stainless steel 304 2,5 2 x G½B 0/25 bar MFW100ChDif D402 88116402

Blue part no. = in-stock items

Housing ⌀ Housing Accuracy class Connection Range Type Part no. Remember
100 mm Stainless steel 304 2,5 2 x G½B 0/250 mbar MFW100ChDif IK1 D402 88146402
100 mm Stainless steel 304 2,5 2 x G½B 0/400 mbar MFW100ChDif IK1 D402 88147402
100 mm Stainless steel 304 2,5 2 x G½B 0/600 mbar MFW100ChDif IK1 D402 88148402
100 mm Stainless steel 304 2,5 2 x G½B 0/1 bar MFW100ChDif IK1 D402 88149402
100 mm Stainless steel 304 2,5 2 x G½B 0/1.6 bar MFW100ChDif IK1 D402 88150402
100 mm Stainless steel 304 2,5 2 x G½B 0/2.5 bar MFW100ChDif IK1 D402 88151402
100 mm Stainless steel 304 2,5 2 x G½B 0/4 bar MFW100ChDif IK1 D402 88152402
100 mm Stainless steel 304 2,5 2 x G½B 0/6 bar MFW100ChDif IK1 D402 88153402
100 mm Stainless steel 304 2,5 2 x G½B 0/10 bar MFW100ChDif IK1 D402 88154402
100 mm Stainless steel 304 2,5 2 x G½B 0/16 bar MFW100ChDif IK1 D402 88155402
100 mm Stainless steel 304 2,5 2 x G½B 0/25 bar MFW100ChDif IK1 D402 88156402

Blue part no. = in-stock items

Housing ⌀ Housing Accuracy class Connection Range Type Part no. Remember
100 mm Stainless steel 304 2,5 2 x G½B 0/250 mbar MFW100ChDif MK1 D402 88126402
100 mm Stainless steel 304 2,5 2 x G½B 0/400 mbar MFW100ChDif MK1 D402 88127402
100 mm Stainless steel 304 2,5 2 x G½B 0/600 mbar MFW100ChDif MK1 D402 88128402
100 mm Stainless steel 304 2,5 2 x G½B 0/1 bar MFW100ChDif MK1 D402 88129402
100 mm Stainless steel 304 2,5 2 x G½B 0/1.6 bar MFW100ChDif MK1 D402 88130402
100 mm Stainless steel 304 2,5 2 x G½B 0/2.5 bar MFW100ChDif MK1 D402 88131402
100 mm Stainless steel 304 2,5 2 x G½B 0/4 bar MFW100ChDif MK1 D402 88132402
100 mm Stainless steel 304 2,5 2 x G½B 0/6 bar MFW100ChDif MK1 D402 88133402
100 mm Stainless steel 304 2,5 2 x G½B 0/10 bar MFW100ChDif MK1 D402 88134402
100 mm Stainless steel 304 2,5 2 x G½B 0/16 bar MFW100ChDif MK1 D402 88135402
100 mm Stainless steel 304 2,5 2 x G½B 0/25 bar MFW100ChDif MK1 D402 88136402

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Spring-diaphragm pressure gauges for chemical applications for differential pressure - overload protected Data sheet PDF
AFRISO Data sheet Spring-diaphragm pressure gauges for chemical applications for differential pressure - overload protected
Mounting of pressure gauge Operating instructions PDF
AFRISO Mounting of pressure gauge
Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure Operating instructions PDF
AFRISO Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure
Pressure gauges Checklists PDF
AFRISO Pressure gauges
Dials for pressure gauges – graduation Technical information PDF
AFRISO Dials for pressure gauges – graduation
Type
MF ChDif D402
MFW ChDif D402
Nominal size
100
Function
The pressures act on two pressure chambers separated by an elastic diaphragm. If there are different pressures in the chambers, the diaphragm is axially displaced against a compression spring. This is transmitted to the movement by means of a rod. The differential pressure is directly indicated by a pointer. The diaphragm is held by a metallic support which results in an overpressure safety of up to 25 bar at both sides.
Accuracy class (EN 837-3/6)
2,5
Ranges (EN 837-3/5)
See ordering table
Maximum static pressure
25 bar
Overpressure safety
Up to the maximum static pressure at both ends
Operating temperature range
Medium:
Max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
at rising temperature approx. ± 0.5 %/10 K
falling temperature approx. ± 0.5 %/10 K
of full scale value
Degree of protection
IP 54 (EN 60529)

Standard design

Connection
Stainless steel 316 Ti/316 L
MF ChDif:
Bottom, parallel, one behind the other
MFW ChDif:
Bottom, parallel next to each other
Measuring element
Compression spring, Stainless steel 301
Diaphragm
FKM (Viton)
Measuring flange
Stainless steel 316 Ti/316 L
Movement
Stainless steel
Dial
Aluminium, white
Scaling black
Pointer
Aluminium, black
Housing
Stainless steel 304
Bayonet type bezel
Stainless steel 304
Window
Laminated safety glass

Options

  • Back flange (MF 100)
  • Electrical contacts (MFW 100)
  • Special scales
  • Other process connections
Click the corresponding image for detail views, additional information and dimension tables.
Bottom connection
AFRISO
Bottom connection
AFRISO
Dimensions (mm):
NG a b ∅c c1 c2 G h k SW
100 16 84 6 3 20 G½B 86 32 22
Bottom connection
AFRISO
Bottom connection
AFRISO
Dimensions (mm):
NG a b2 ∅c c1 c2 ∅D G h1 k1 SW
100 16 49 6 3 20 99 G½B 177 37 22

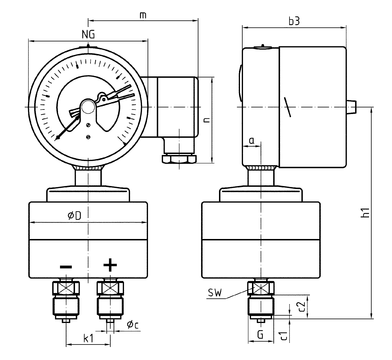

Bottom connection, with electrical contact
AFRISO
Bottom connection, with electrical contact
AFRISO
Dimensions (mm):
NG a b3 ∅c c1 c2 ∅D G h1 k1 m n SW
100 16 87 6 3 20 99 G½B 177 37 92 72 22
