Bourdon tube safety pressure gauges Type D4

AFRISO Rohrfeder-Sicherheitsmanometer RF63Si -1/0bar G1/4B radial Kl.1,6 D402 SAL 37650 37660 37670 37680 37690 37700 37710 37720 37730 37740 37750 37760 37770 37780 37790 37800 37810 37820 37830 37840 37850 37860 37880 37890 54690 54700 54710 54720 54730 54740 54750 54760 54770 54780 54790 54800 54810 54820 54830 54840 54850 54860 54870 54880 54890 54900 54920 54930 54960 54970 54980 54990 55000 55010 55020 55030 55040 55050 55060 55070 55080 55090 55100 55110 55120 55130 55140 55150 55160 55170 55180 55190 55220 55230 55240 55250 55260 55270 55280 55290 55300 55310 55320 55330 55340 55350 55360 55370 55380 55390 55400 55410 55420 55430 55440 55450 object_image_64373imagemain_en AFRISO Rohrfeder-Sicherheitsmanometer RF63Si -1/0bar G1/4B radial Kl.1,6 D402 SAL 37650 37660 37670 37680 37690 37700 37710 37720 37730 37740 37750 37760 37770 37780 37790 37800 37810 37820 37830 37840 37850 37860 37880 37890 54690 54700 54710 54720 54730 54740 54750 54760 54770 54780 54790 54800 54810 54820 54830 54840 54850 54860 54870 54880 54890 54900 54920 54930 54960 54970 54980 54990 55000 55010 55020 55030 55040 55050 55060 55070 55080 55090 55100 55110 55120 55130 55140 55150 55160 55170 55180 55190 55220 55230 55240 55250 55260 55270 55280 55290 55300 55310 55320 55330 55340 55350 55360 55370 55380 55390 55400 55410 55420 55430 55440 55450 object_image_64373imagemain_en
Rohrfeder-Sicherheitsmanometer RF63Si -1/0bar G1/4B radial Kl.1,6 D402
AFRISO Rohrfeder-Sicherheitsmanometer RF63Si -1/0bar G1/4B radial Kl.1,6 D402 SAL 37650 37660 37670 37680 37690 37700 37710 37720 37730 37740 37750 37760 37770 37780 37790 37800 37810 37820 37830 37840 37850 37860 37880 37890 54690 54700 54710 54720 54730 54740 54750 54760 54770 54780 54790 54800 54810 54820 54830 54840 54850 54860 54870 54880 54890 54900 54920 54930 54960 54970 54980 54990 55000 55010 55020 55030 55040 55050 55060 55070 55080 55090 55100 55110 55120 55130 55140 55150 55160 55170 55180 55190 55220 55230 55240 55250 55260 55270 55280 55290 55300 55310 55320 55330 55340 55350 55360 55370 55380 55390 55400 55410 55420 55430 55440 55450 object_image_64373imagemain_en
AFRISO Rohrfeder-Sicherheitsmanometer RF100Si -1/0bar G1/2B radial Kl.1,0 D402 SAL 37920 37930 37940 37950 37960 37970 37980 37990 38000 38010 38020 38030 38040 38050 38060 38070 38080 38090 38100 38110 38120 38130 38140 38150 54690 54700 54710 54720 54730 54740 54750 54760 54770 54780 54790 54800 54810 54820 54830 54840 54850 54860 54870 54880 54890 54900 54920 54930 54960 54970 54980 54990 55000 55010 55020 55030 55040 55050 55060 55070 55080 55090 55100 55110 55120 55130 55140 55150 55160 55170 55180 55190 55220 55230 55240 55250 55260 55270 55280 55290 55300 55310 55320 55330 55340 55350 55360 55370 55380 55390 55400 55410 55420 55430 55440 55450 AFRISO Rohrfeder-Sicherheitsmanometer RF100Si -1/0bar G1/2B radial Kl.1,0 D402 SAL 37920 37930 37940 37950 37960 37970 37980 37990 38000 38010 38020 38030 38040 38050 38060 38070 38080 38090 38100 38110 38120 38130 38140 38150 54690 54700 54710 54720 54730 54740 54750 54760 54770 54780 54790 54800 54810 54820 54830 54840 54850 54860 54870 54880 54890 54900 54920 54930 54960 54970 54980 54990 55000 55010 55020 55030 55040 55050 55060 55070 55080 55090 55100 55110 55120 55130 55140 55150 55160 55170 55180 55190 55220 55230 55240 55250 55260 55270 55280 55290 55300 55310 55320 55330 55340 55350 55360 55370 55380 55390 55400 55410 55420 55430 55440 55450
Rohrfeder-Sicherheitsmanometer RF100Si -1/0bar G1/2B radial Kl.1,0 D402
AFRISO Rohrfeder-Sicherheitsmanometer RF100Si -1/0bar G1/2B radial Kl.1,0 D402 SAL 37920 37930 37940 37950 37960 37970 37980 37990 38000 38010 38020 38030 38040 38050 38060 38070 38080 38090 38100 38110 38120 38130 38140 38150 54690 54700 54710 54720 54730 54740 54750 54760 54770 54780 54790 54800 54810 54820 54830 54840 54850 54860 54870 54880 54890 54900 54920 54930 54960 54970 54980 54990 55000 55010 55020 55030 55040 55050 55060 55070 55080 55090 55100 55110 55120 55130 55140 55150 55160 55170 55180 55190 55220 55230 55240 55250 55260 55270 55280 55290 55300 55310 55320 55330 55340 55350 55360 55370 55380 55390 55400 55410 55420 55430 55440 55450
AFRISO Rohrfeder-Sicherheitsmanometer RF63Si -1/0bar G1/4B radial Kl.1,6 D402 SAL 37650 37660 37670 37680 37690 37700 37710 37720 37730 37740 37750 37760 37770 37780 37790 37800 37810 37820 37830 37840 37850 37860 37880 37890 54690 54700 54710 54720 54730 54740 54750 54760 54770 54780 54790 54800 54810 54820 54830 54840 54850 54860 54870 54880 54890 54900 54920 54930 54960 54970 54980 54990 55000 55010 55020 55030 55040 55050 55060 55070 55080 55090 55100 55110 55120 55130 55140 55150 55160 55170 55180 55190 55220 55230 55240 55250 55260 55270 55280 55290 55300 55310 55320 55330 55340 55350 55360 55370 55380 55390 55400 55410 55420 55430 55440 55450 object_image_64373imagemain_en
AFRISO Rohrfeder-Sicherheitsmanometer RF100Si -1/0bar G1/2B radial Kl.1,0 D402 SAL 37920 37930 37940 37950 37960 37970 37980 37990 38000 38010 38020 38030 38040 38050 38060 38070 38080 38090 38100 38110 38120 38130 38140 38150 54690 54700 54710 54720 54730 54740 54750 54760 54770 54780 54790 54800 54810 54820 54830 54840 54850 54860 54870 54880 54890 54900 54920 54930 54960 54970 54980 54990 55000 55010 55020 55030 55040 55050 55060 55070 55080 55090 55100 55110 55120 55130 55140 55150 55160 55170 55180 55190 55220 55230 55240 55250 55260 55270 55280 55290 55300 55310 55320 55330 55340 55350 55360 55370 55380 55390 55400 55410 55420 55430 55440 55450
Data sheet Bourdon tube safety pressure gauges Type D4
AFRISO Data sheet Bourdon tube safety pressure gauges Type D4

Benefits

  • Safety housing S3 as per EN 837-1/9.7.2
  • Measuring system fully welded to housing
  • Tightness-tested with helium
  • DNV- and GOSSTANDART-certified
  • Ex version (optional)

Application

For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments. This gauge is designed for applications as per EN 837-1/9.7.2.

Versions

Housing ⌀ Connection Alignment Housing Accuracy class Range Type Part no. Remember
63 mm G¼B Bottom Stainless steel 304 1,6 -1/0 bar RF63Si D402 85401402
63 mm G¼B Bottom Stainless steel 304 1,6 -1/+0.6 bar RF63Si D402 85402402
63 mm G¼B Bottom Stainless steel 304 1,6 -1/+1.5 bar RF63Si D402 85403402
63 mm G¼B Bottom Stainless steel 304 1,6 -1/+3 bar RF63Si D402 85404402
63 mm G¼B Bottom Stainless steel 304 1,6 -1/+5 bar RF63Si D402 85405402
63 mm G¼B Bottom Stainless steel 304 1,6 -1/+9 bar RF63Si D402 85406402
63 mm G¼B Bottom Stainless steel 304 1,6 -1/+15 bar RF63Si D402 85407402
63 mm G¼B Bottom Stainless steel 304 1,6 0/0.6 bar RF63Si D402 85409402
63 mm G¼B Bottom Stainless steel 304 1,6 0/1 bar RF63Si D402 85410402
63 mm G¼B Bottom Stainless steel 304 1,6 0/1.6 bar RF63Si D402 85411402
63 mm G¼B Bottom Stainless steel 304 1,6 0/2.5 bar RF63Si D402 85412402
63 mm G¼B Bottom Stainless steel 304 1,6 0/4 bar RF63Si D402 85413402
63 mm G¼B Bottom Stainless steel 304 1,6 0/6 bar RF63Si D402 85414402
63 mm G¼B Bottom Stainless steel 304 1,6 0/10 bar RF63Si D402 85415402
63 mm G¼B Bottom Stainless steel 304 1,6 0/16 bar RF63Si D402 85416402
63 mm G¼B Bottom Stainless steel 304 1,6 0/25 bar RF63Si D402 85417402
63 mm G¼B Bottom Stainless steel 304 1,6 0/40 bar RF63Si D402 85418402
63 mm G¼B Bottom Stainless steel 304 1,6 0/60 bar RF63Si D402 85419402
63 mm G¼B Bottom Stainless steel 304 1,6 0/100 bar RF63Si D402 85420402
63 mm G¼B Bottom Stainless steel 304 1,6 0/160 bar RF63Si D402 85421402
63 mm G¼B Bottom Stainless steel 304 1,6 0/250 bar RF63Si D402 85422402
63 mm G¼B Bottom Stainless steel 304 1,6 0/400 bar RF63Si D402 85423402
63 mm G¼B Bottom Stainless steel 304 2,5 0/600 bar RF63Si D402 85424402
63 mm G¼B Bottom Stainless steel 304 2,5 0/1,000 bar RF63Si D402 85425402

Blue part no. = in-stock items

Housing ⌀ Connection Alignment Housing Accuracy class Range Type Part no. Remember
100 mm G½B Bottom Stainless steel 304 1,0 -1/0 bar RF100Si D402 85451402
100 mm G½B Bottom Stainless steel 304 1,0 -1/+0.6 bar RF100Si D402 85452402
100 mm G½B Bottom Stainless steel 304 1,0 -1/+1.5 bar RF100Si D402 85453402
100 mm G½B Bottom Stainless steel 304 1,0 -1/+3 bar RF100Si D402 85454402
100 mm G½B Bottom Stainless steel 304 1,0 -1/+5 bar RF100Si D402 85455402
100 mm G½B Bottom Stainless steel 304 1,0 -1/+9 bar RF100Si D402 85456402
100 mm G½B Bottom Stainless steel 304 1,0 -1/+15 bar RF100Si D402 85457402
100 mm G½B Bottom Stainless steel 304 1,0 0/0.6 bar RF100Si D402 85459402
100 mm G½B Bottom Stainless steel 304 1,0 0/1 bar RF100Si D402 85460402
100 mm G½B Bottom Stainless steel 304 1,0 0/1.6 bar RF100Si D402 85461402
100 mm G½B Bottom Stainless steel 304 1,0 0/2.5 bar RF100Si D402 85462402
100 mm G½B Bottom Stainless steel 304 1,0 0/4 bar RF100Si D402 85463402
100 mm G½B Bottom Stainless steel 304 1,0 0/6 bar RF100Si D402 85464402
100 mm G½B Bottom Stainless steel 304 1,0 0/10 bar RF100Si D402 85465402
100 mm G½B Bottom Stainless steel 304 1,0 0/16 bar RF100Si D402 85466402
100 mm G½B Bottom Stainless steel 304 1,0 0/25 bar RF100Si D402 85467402
100 mm G½B Bottom Stainless steel 304 1,0 0/40 bar RF100Si D402 85468402
100 mm G½B Bottom Stainless steel 304 1,0 0/60 bar RF100Si D402 85469402
100 mm G½B Bottom Stainless steel 304 1,0 0/100 bar RF100Si D402 85470402
100 mm G½B Bottom Stainless steel 304 1,0 0/160 bar RF100Si D402 85471402
100 mm G½B Bottom Stainless steel 304 1,0 0/250 bar RF100Si D402 85472402
100 mm G½B Bottom Stainless steel 304 1,0 0/400 bar RF100Si D402 85473402
100 mm G½B Bottom Stainless steel 304 1,0 0/600 bar RF100Si D402 85474402
100 mm G½B Bottom Stainless steel 304 1,0 0/1,000 bar RF100Si D402 85475402

Blue part no. = in-stock items

Housing ⌀ Connection Alignment Housing Accuracy class Range Type Part no. Remember
160 mm G½B Bottom Stainless steel 304 1,0 -1/0 bar RF160Si D402 85501402
160 mm G½B Bottom Stainless steel 304 1,0 -1/+0.6 bar RF160Si D402 85502402
160 mm G½B Bottom Stainless steel 304 1,0 -1/+1.5 bar RF160Si D402 85503402
160 mm G½B Bottom Stainless steel 304 1,0 -1/+3 bar RF160Si D402 85504402
160 mm G½B Bottom Stainless steel 304 1,0 -1/+5 bar RF160Si D402 85505402
160 mm G½B Bottom Stainless steel 304 1,0 -1/+9 bar RF160Si D402 85506402
160 mm G½B Bottom Stainless steel 304 1,0 -1/+15 bar RF160Si D402 85507402
160 mm G½B Bottom Stainless steel 304 1,0 0/0.6 bar RF160Si D402 85509402
160 mm G½B Bottom Stainless steel 304 1,0 0/1 bar RF160Si D402 85510402
160 mm G½B Bottom Stainless steel 304 1,0 0/1.6 bar RF160Si D402 85511402
160 mm G½B Bottom Stainless steel 304 1,0 0/2.5 bar RF160Si D402 85512402
160 mm G½B Bottom Stainless steel 304 1,0 0/4 bar RF160Si D402 85513402
160 mm G½B Bottom Stainless steel 304 1,0 0/6 bar RF160Si D402 85514402
160 mm G½B Bottom Stainless steel 304 1,0 0/10 bar RF160Si D402 85515402
160 mm G½B Bottom Stainless steel 304 1,0 0/16 bar RF160Si D402 85516402
160 mm G½B Bottom Stainless steel 304 1,0 0/25 bar RF160Si D402 85517402
160 mm G½B Bottom Stainless steel 304 1,0 0/40 bar RF160Si D402 85518402
160 mm G½B Bottom Stainless steel 304 1,0 0/60 bar RF160Si D402 85519402
160 mm G½B Bottom Stainless steel 304 1,0 0/100 bar RF160Si D402 85520402
160 mm G½B Bottom Stainless steel 304 1,0 0/160 bar RF160Si D402 85521402
160 mm G½B Bottom Stainless steel 304 1,0 0/250 bar RF160Si D402 85522402
160 mm G½B Bottom Stainless steel 304 1,0 0/400 bar RF160Si D402 85523402
160 mm G½B Bottom Stainless steel 304 1,0 0/600 bar RF160Si D402 85524402
160 mm G½B Bottom Stainless steel 304 1,0 0/1,000 bar RF160Si D402 85525402

Blue part no. = in-stock items

Housing ⌀ Connection Alignment Housing Accuracy class Range Type Part no. Remember
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/0 bar RF63Si D412 85401412
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+0.6 bar RF63Si D412 85402412
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+1.5 bar RF63Si D412 85403412
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+3 bar RF63Si D412 85404412
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+5 bar RF63Si D412 85405412
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+9 bar RF63Si D412 85406412
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+15 bar RF63Si D412 85407412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/0.6 bar RF63Si D412 85409412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/1 bar RF63Si D412 85410412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/1.6 bar RF63Si D412 85411412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/2.5 bar RF63Si D412 85412412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/4 bar RF63Si D412 85413412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/6 bar RF63Si D412 85414412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/10 bar RF63Si D412 85415412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/16 bar RF63Si D412 85416412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/25 bar RF63Si D412 85417412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/40 bar RF63Si D412 85418412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/60 bar RF63Si D412 85419412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/100 bar RF63Si D412 85420412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/160 bar RF63Si D412 85421412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/250 bar RF63Si D412 85422412
63 mm G¼B Bottom back Stainless steel 304 1,6 0/400 bar RF63Si D412 85423412
63 mm G¼B Bottom back Stainless steel 304 2,5 0/600 bar RF63Si D412 85424412
63 mm G¼B Bottom back Stainless steel 304 2,5 0/1,000 bar RF63Si D412 85425412

Blue part no. = in-stock items

Housing ⌀ Connection Alignment Housing Accuracy class Range Type Part no. Remember
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/0 bar RF63Si D432 85401432
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+0.6 bar RF63Si D432 85402432
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+1.5 bar RF63Si D432 85403432
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+3 bar RF63Si D432 85404432
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+5 bar RF63Si D432 85405432
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+9 bar RF63Si D432 85406432
63 mm G¼B Bottom back Stainless steel 304 1,6 -1/+15 bar RF63Si D432 85407432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/0.6 bar RF63Si D432 85409432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/1 bar RF63Si D432 85410432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/1.6 bar RF63Si D432 85411432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/2.5 bar RF63Si D432 85412432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/4 bar RF63Si D432 85413432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/6 bar RF63Si D432 85414432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/10 bar RF63Si D432 85415432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/16 bar RF63Si D432 85416432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/25 bar RF63Si D432 85417432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/40 bar RF63Si D432 85418432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/60 bar RF63Si D432 85419432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/100 bar RF63Si D432 85420432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/160 bar RF63Si D432 85421432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/250 bar RF63Si D432 85422432
63 mm G¼B Bottom back Stainless steel 304 1,6 0/400 bar RF63Si D432 85423432
63 mm G¼B Bottom back Stainless steel 304 2,5 0/600 bar RF63Si D432 85424432
63 mm G¼B Bottom back Stainless steel 304 2,5 0/1,000 bar RF63Si D432 85425432

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Bourdon tube safety pressure gauges Type D4 Data sheet PDF
AFRISO Data sheet Bourdon tube safety pressure gauges Type D4
Mounting of pressure gauge Operating instructions PDF
AFRISO Mounting of pressure gauge
Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges RF...Ex, KP...Ex, PF...Ex Operating instructions PDF
AFRISO Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges RF...Ex, KP...Ex, PF...Ex
Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure Operating instructions PDF
AFRISO Bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure
Pressure gauges Checklists PDF
AFRISO Pressure gauges
Dials for pressure gauges – graduation Technical information PDF
AFRISO Dials for pressure gauges – graduation
Selection criteria and safety considerations for pressure gauges as per EN 837-2 Technical information PDF
AFRISO Selection criteria and safety considerations for pressure gauges as per EN 837-2
ATEX certificate pressure gauges Products PDF
AFRISO ATEX certificate pressure gauges
STP file (3D) RF63SI_D402_854XX402 CAD file STP AFRISO STP file (3D) RF63SI_D402_854XX402
STP file (3D) RF100SI_D402_854XX402 CAD file STP AFRISO STP file (3D) RF100SI_D402_854XX402
STP file (3D) RF160SI_D402_855XX402 CAD file STP AFRISO STP file (3D) RF160SI_D402_855XX402
STP file (3D) RF63SI_D412_854XX412 CAD file STP AFRISO STP file (3D) RF63SI_D412_854XX412
STP file (3D) RF63SI_D432_854XX432 CAD file STP AFRISO STP file (3D) RF63SI_D432_854XX432
Fitting of / combination possibilities of AFRISO pressure gauges and chemical seals CAD filePressure measuring instruments PDF
AFRISO Fitting of / combination possibilities of AFRISO pressure gauges and chemical seals
Bourdon tube pressure gauge Options PDF
AFRISO Bourdon tube pressure gauge
Type
D4
Nominal size
63 – 100 – 160
Accuracy class
EN 837-1/6
NG 63, ≤ 400 bar:
1,6
NG 63, ≥ 600 bar:
2,5
NG 100:
1,0
NG 160:
1,0
Ranges (EN 837-1/5)
See ordering table
Application area
NG 100, NG 160
Static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
Dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
Short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Operating temperature range
Medium:
Max. 100 °C
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529)

Standard design

Connection
Stainless steel 316 L, bottom or bottom back
Measuring element
Bourdon tube Stainless steel 316 Ti/316 L
≤ 60 bar:
"C" type tube
> 60 bar:
Helical tube
Tightness-tested with helium
Movement
Stainless steel
Dial
Aluminium, white
Scaling black
Pointer
Aluminium, black
Housing
Stainless steel 304, with solid baffle wall and blow-out (S3)
Bayonet type bezel
Stainless steel 304
Window
Laminated safety glass

Options

  • Glycerine filling (bottom version type D8)
  • 3-hole fixing, panel mounting bezel
  • Ex version
  • Special scales
  • Other process connections
Click the corresponding image for detail views, additional information and dimension tables.
NG 63 – bottom connection
AFRISO
NG 63 – bottom connection
AFRISO
Dimensions (mm):
NG a b ∅c c1 c2 G h SW
63 18 41 5 2 13 G¼B 53 14

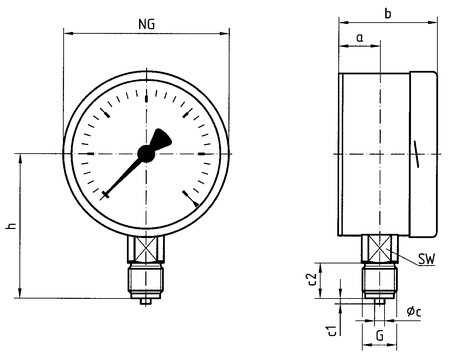

NG 100/160 – bottom connection
AFRISO
NG 100/160 – bottom connection
AFRISO
Dimensions (mm):
NG a b ∅c c1 c2 G h SW
100 27 60 6 3 20 G½B 86 22
160 40 78 6 3 20 G½B 118 22
NG 63 – bottom back connection
AFRISO
NG 63 – bottom back connection
AFRISO
Dimensions (mm):
NG b ∅c c1 c2 e G g SW
63 41 5 2 13 18 G¼B 60 14
NG 63 – bottom back connection, 3-hole fixing, panel mounting bezel
AFRISO
NG 63 – bottom back connection, 3-hole fixing, panel mounting bezel
AFRISO
Dimensions (mm):
NG b ∅c c1 c2 d1 d2 d3 e G g s2 s3 SW
63 41 5 2 13 75 85 3,6 18 G¼B 60 3 5 14
