Data sheet Pressure transducers DeltaFox DMU 11 D Version for differential pressure measurement
AFRISO Data sheet Pressure transducers DeltaFox DMU 11 D Version for differential pressure measurement

Benefits

  • Compact design
  • High overload safety
  • Mechanically robust and reliable, suitable for applications involving dynamic pressure changes as well as shock and vibration

Application

For electronic differential pressure measurement in industrial applications. For corrosive gaseous and liquid media which are not highly viscous and do not crystallise.

Versions

Type Connection Measuring range Part no. Remember
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/40 mbar 31830
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/60 mbar 31831
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/100 mbar 31813
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/160 mbar 31814
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/250 mbar 31815
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/400 mbar 31832
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/600 mbar 31833
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/1 bar 31816
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/1.6 bar 31834
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/2.5 bar 31817
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/4 bar 31835
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/6 bar 31818
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/10 bar 31836
DeltaFox DMU 11 D 2 x G½B EN 837-1/7.3 0/16 bar 31837

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Pressure transducers DeltaFox DMU 11 D Version for differential pressure measurement Data sheet PDF
AFRISO Data sheet Pressure transducers DeltaFox DMU 11 D Version for differential pressure measurement
Differential pressure transducers DMU 10 D, DMU 11 D Operating instructions PDF
AFRISO Differential pressure transducers DMU 10 D, DMU 11 D
Electronic pressure measurement - pressure transducers DMU series Product range industrial technology PDF
AFRISO Electronic pressure measurement - pressure transducers DMU series
Enquiry pressure transducers DMU Checklists PDF
AFRISO Enquiry pressure transducers DMU
Differential pressure transducers DMU 10 D, DMU 11 D Declaration of Conformity PDF
AFRISO Differential pressure transducers DMU 10 D, DMU 11 D
NA Pressure transducers HydroFox® DMU 08 Options PDF
AFRISO NA Pressure transducers HydroFox® DMU 08
measuring ranges
Nominal pressure 0.2 bar 0.4 bar 1 bar 2.5 bar 6 bar 16 bar
differential pressure measuring range
turn down 1:1 – 1:10 		0/0.02 – 0/0.2 bar 0/0.04 – 0/0.4 bar 0/0.1 – 0/1.0 bar 0/0.25 – 0/2.5 bar 0/0.6 – 0/6.0 bar 0/1.6 – 0/16 bar
max. static pressure at one end 0.5 bar 1 bar 3 bar 6 bar 20 bar 60 bar
Temperature error
error band ≤ ± 2.5 % FSO ≤ ± 2 % FSO ≤ ± 1.5 % FSO ≤ ± 1.5 % FSO ≤ ± 1.5 % FSO ≤ ± 1.5 % FSO
in compensated range 0/50 °C 0/50 °C 0/50 °C 0/50 °C 0/70 °C 0/70 °C
Measuring accuracy
turn down from 1:1 to 1:2 ≤ ± 0.5 % FSO ≤ ± 0.5 % FSO ≤ ± 0.5 % FSO
turn down from 1:2 to 1:10 ≤ ± 1 % FSO ≤ ± 1 % FSO ≤ ± 1 % FSO
turn down from 1:1 to 1:5 ≤ ± 0.5 % FSO ≤ ± 0.5 % FSO ≤ ± 0.5 % FSO
turn down from 1:5 to 1:10 ≤ ± 1 % FSO ≤ ± 1 % FSO ≤ ± 1 % FSO
Measuring range
See ordering table
Operating temperature range
Medium:
-25/+125 °C
Ambient:
-25/+85 °C
Storage:
-40/+100 °C
Dynamic characteristics
Response time:
< 5 ms
Process connection
2 x G½B EN 837-1/7.3
Material
Housing:
Aluminium, eloxed, black
Pressure connection:
Stainless steel 316 L
Diaphragm:
Stainless steel 316 L
Seal:
FKM (Viton)
Supply voltage
DC 12 – 36 V
Output signal
2-wire, 4–20 mA
Load
R<sub>Max</sub> = [(UB – UB<sub>Min</sub>)/0.02 A] Ω
Current input
< 25 mA
Electrical protection
Short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
Pressure Equipment Directive 2014/68/EU
Scope of delivery
  • Pressure measuring instrument
  • Mounting bracket

Options

  • Other process connections
  • Other electrical connections
  • Other seal materials
  • Other output signals
  • Fitting of chemical seal

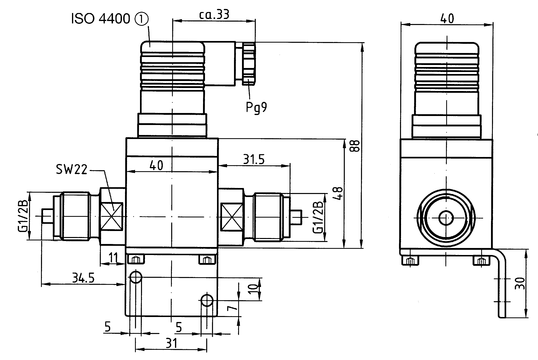

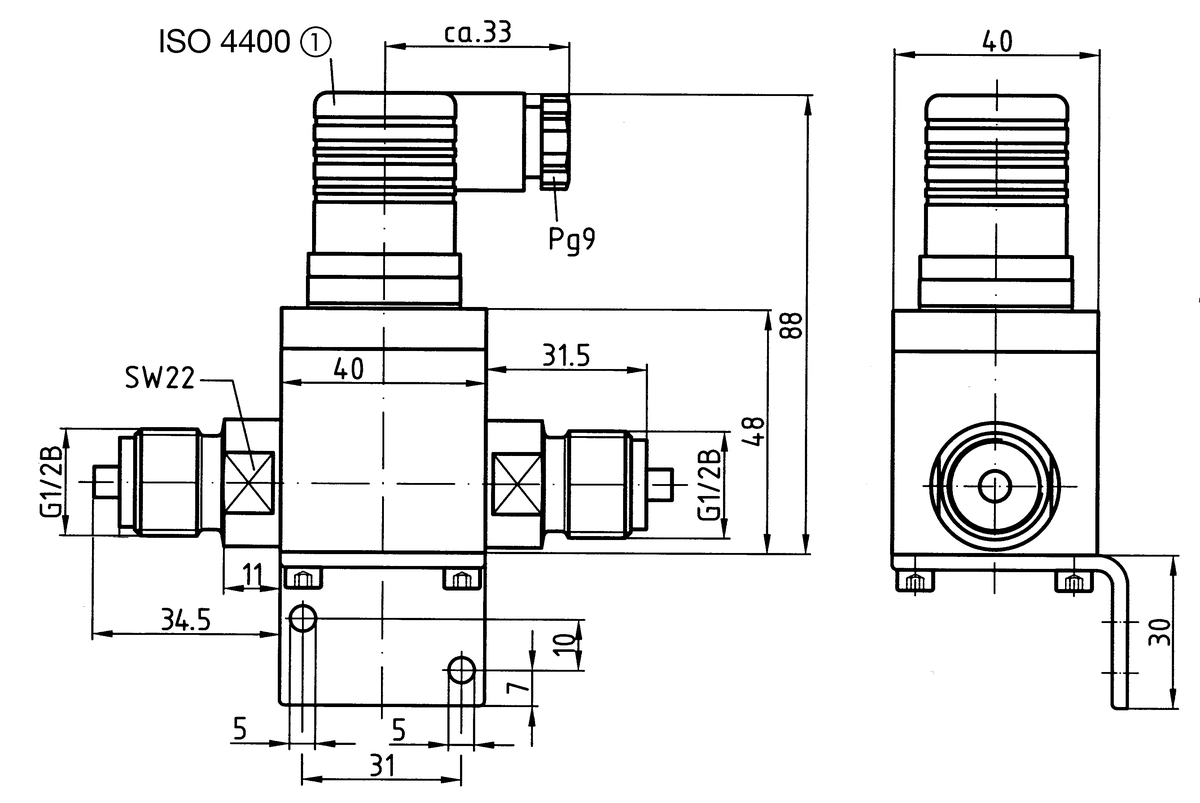

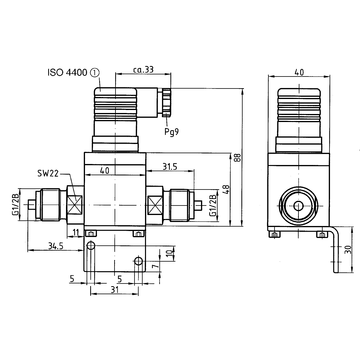

DMU 11 D - connection 2 x G½B (EN 837)
AFRISO
DMU 11 D - connection 2 x G½B (EN 837)
AFRISO
Dimensions (in mm)
  1. Screw

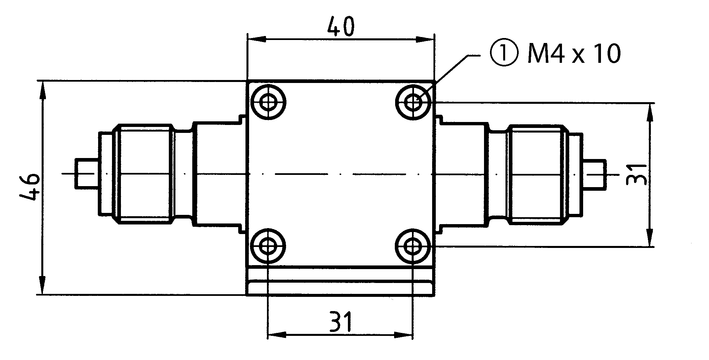

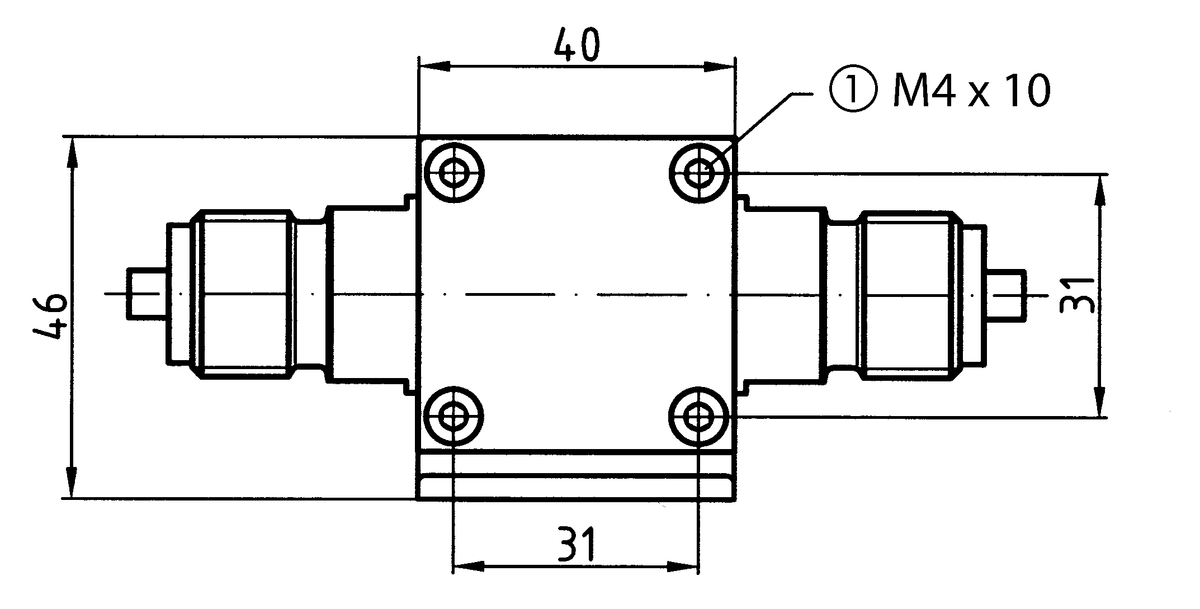

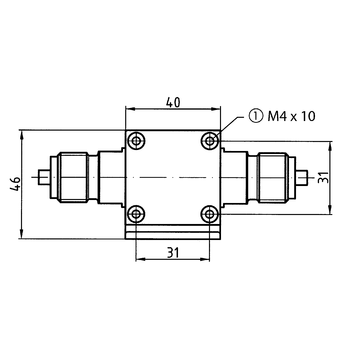

DMU 11 D - connection 2 x G½B (EN 837)
AFRISO
DMU 11 D - connection 2 x G½B (EN 837)
AFRISO
Dimensions (in mm)
  1. Connector

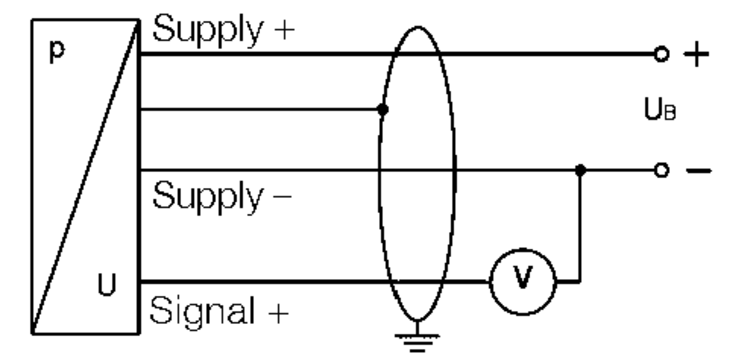

wiring diagram
AFRISO
wiring diagram
AFRISO
3-wire 0-10 V
wiring diagram
AFRISO
wiring diagram
AFRISO
2-wire, 4-20 mA
AFRISO
AFRISO

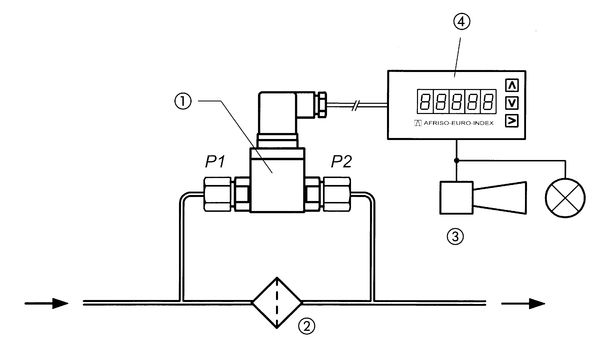

  1. DeltaFox DMU 11 D
  2. Filter
  3. Alarm signal filter change
  4. Digital display unit DA 12
