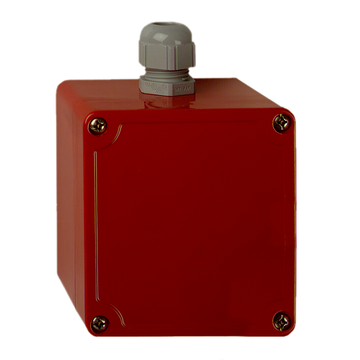

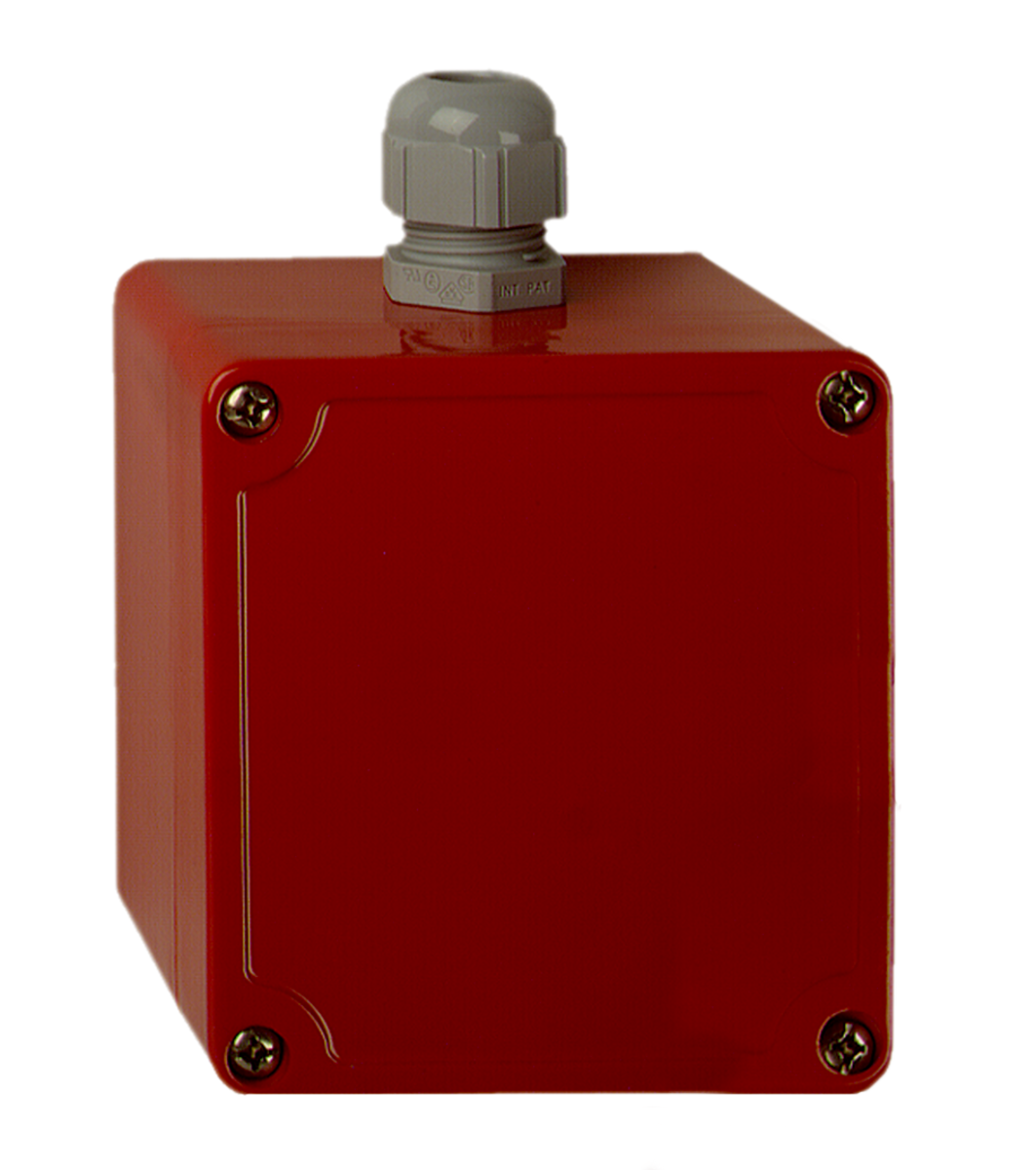

Gas sensor GS 600 ST

SAL 77260 77270 77280 77290 77300 77310 77320 object_image_64489imagemain_en
Data sheet Gas sensor GS 600 ST
AFRISO Data sheet Gas sensor GS 600 ST

Application

For monitoring the oxygen concentration or toxic gases. Can also be used in dusty and dirty environments.

Versions

Part no. Remember
Gas sensor GS 600 ST (EC) O2 0.1–25 % by volume 61179
Gas sensor GS 600 ST (EC) CO 0–300 ppm 61180
Gas sensor GS 600 ST (EC) H2S 0–50/100 ppm 61121
Gas sensor GS 600 ST (EC) NH3 0–100 ppm 61122
Gas sensor GS 600 ST (EC) NO2 0–50 ppm 61123
Gas sensor GS 600 ST (EC) Cl2 0–10 ppm 61124
Gas sensor GS 600 ST (EC) SO2 0–100 ppm 61126

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Gas sensor GS 600 ST Data sheet PDF
AFRISO Data sheet Gas sensor GS 600 ST
Gas sensor GS 600 ST (EC) Declaration of Conformity PDF
AFRISO Gas sensor GS 600 ST (EC)
For connection to the gas alarm units GW-S 2.1/GW-S 4.1/GW-SK 6.1. Aluminium version for wall mounting housing. Connection cable (shielded) 3 x 1.5 mm2 Cu+ protective conductor, supply and return conductor (max. 100 Ohm line resistance).
Measuring range
See ordering table
Measuring principle
Electrochemical (EC)
Service life:
Bis 2 Jahre
Supply voltage
DC 24 V ± 5 %
Operating temperature range
Ambient:
-20/+50 °C
Humidity/moisture
15/95 % rH
Atmospheric pressure
900/1,100 hPa
Housing
W x H x D:
90 x 85 x 65 mm
Weight:
Approx. 0.5 kg
Degree of protection:
IP 54 (EN 60529)
Output signal
4–20 mA

Options

  • RS 232 interface
