Data sheet Heating pump assembly PrimoTherm® K 180-2 DN32 KVS Vario
AFRISO Data sheet Heating pump assembly PrimoTherm® K 180-2 DN32 KVS Vario

Benefits

  • Pre-assembled, tightness-tested and heat-insulated assembly
  • Compact design
  • Robust mixer with adjustable flow coefficient Kvs from 12 to 22 m3/h
  • Available with high energy efficiency pumps class A and high-grade, robust mixer as well as actuator
  • Easy, fast mounting

Application

Heating pump assembly for use in non-mixed heating circuits. It connects the heating boiler and the pipe system. With the 3-way mixer KVS Vario and the actuator, the flow temperature can be adjusted to a desired temperature by adding water from the return. PrimoTherm® 180-2 can also be used to increase the return temperature with solid fuel boilers which have a controller for increasing the return temperature. The opening temperature must be set at this controller.

Versions

Pump Part no. Remember
Heating pump assembly PrimoTherm® K 180-2 DN32 3WM-SM Vario Without circulation pump 79502
Heating pump assembly PrimoTherm® K 180-2 DN32 GP 3WM-SM Vario Grundfos UPM3(K) HYBRID 32-70 180 (N) 79505
Heating pump assembly PrimoTherm® K 180-2 DN32 WP 3WM-SM Vario Wilo Para OPT 30-180/8-60/SC 79506

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Heating pump assembly PrimoTherm® K 180-2 DN32 KVS Vario Data sheet PDF
AFRISO Data sheet Heating pump assembly PrimoTherm® K 180-2 DN32 KVS Vario
Heating pump assembly PrimoTherm 180-1 DN 32, 180-2 DN 32 Operating instructions PDF
AFRISO Heating pump assembly PrimoTherm 180-1 DN 32, 180-2 DN 32

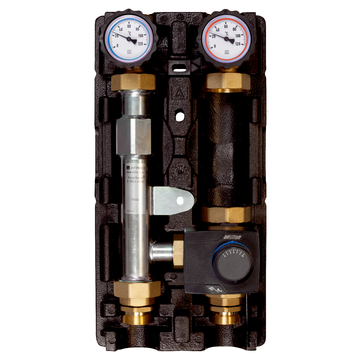

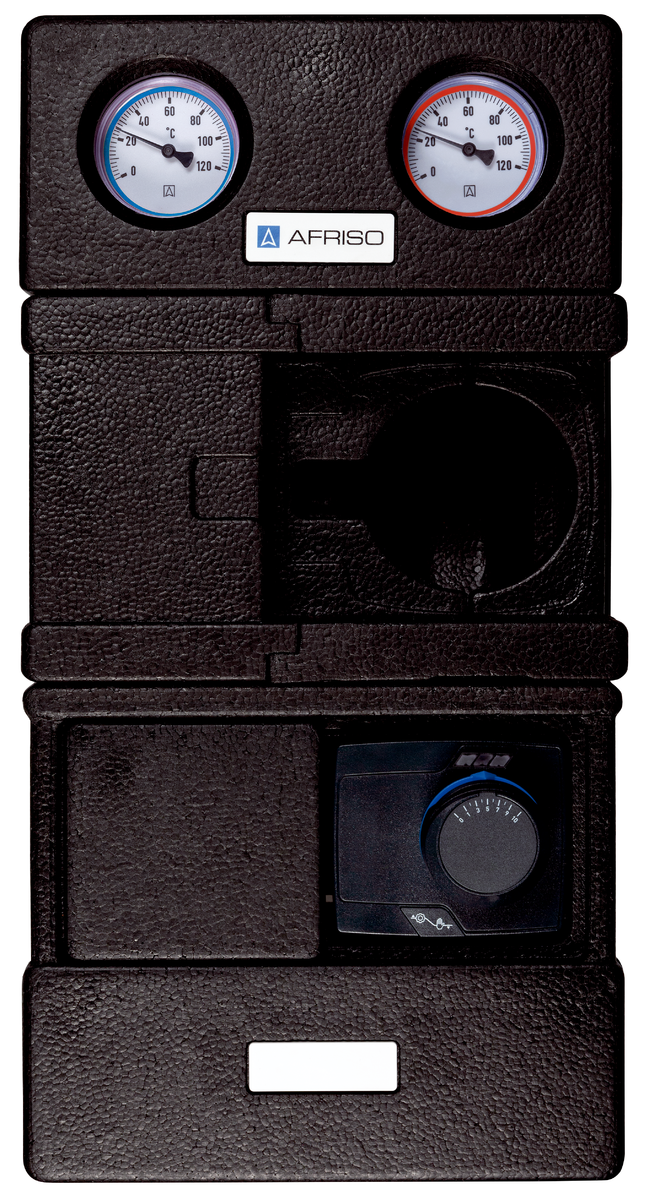

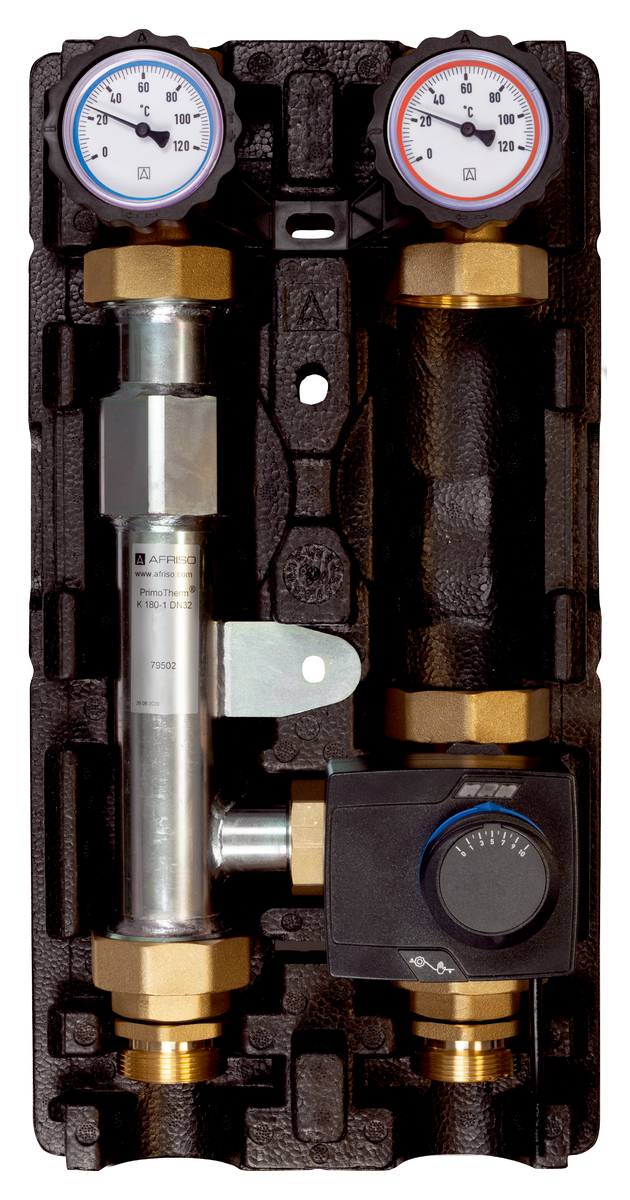

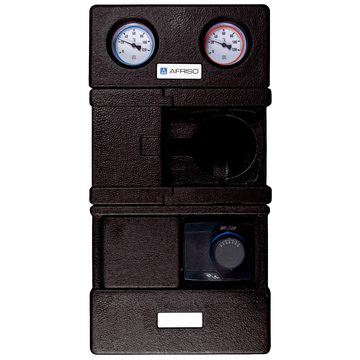

Complete, pre-assembled and tightness-tested heating pump assembly with all required functional components, form-fit insulation and wall mounting unit.

The Flow line consists of:

Combination valve with thermometer in the hand wheel (red mark, range 0/120 °C)

3-way mixing valve ARV 325 KVS Vario with adjustable flow coefficient Kvs and ProClick adapter system

Maintenance-free, silent actuator ARM 343 (6 Nm, 120 s, AC 230 V) with 0/90° angle of rotation, indication for direction of rotation, selector key "Manual/Automatic Mode" and ProClick adapter system

System connection G1¼ female (heating circuit)

Suitable for pumps with 2" x 180 mm.

The Return line consists of:

Combination valve with thermometer in the handle (blue mark, range 0/120 °C), pipe for length compensation with gravity brake

System connection (boiler) G2 with screw connection G1¼ female (easy mounting and adapter G1½ AB for use with boiler manifold)

Axis distance
125 mm
System connections
Boiler:
G1¼ IG
Heating circuit:
G1¼ IG
Operating temperature range
Medium:
Max. 110 °C
System pressure
Max. 10 bar
Observe maximum pressure of circulation pumps used
Nominal size
DN 32
Flow coefficient Kvs
Adjustable: 12 – 16 – 22 m<sup>3</sup>/h
Leak rate
Mixing valve ARV 325 KVS Vario: < 0.7 % of flow coefficient Kvs (up to ∆p 0.5 bar < 0.3 % of flow coefficient Kvs)
Polypropylene EPP
Dimensions
W x H x D:
248 x 480 x 170 mm
Circulation pump
Without circulation pump
Grundfos UPM3(K) HYBRID 32-70 180 (N)
Wilo Para OPT 30-180/8-60/SC
Options
  • High-efficiency pump Wilo Stratos Para 30 1-7 r. K.
  • Other circulation pumps
