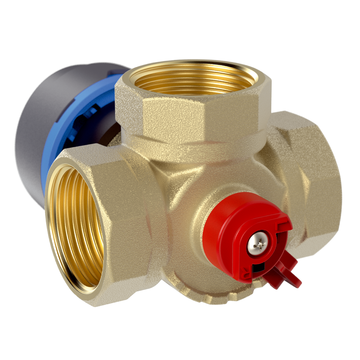

3-way mixing valves ARV Vario

Data sheet 3-way mixing valves ARV Vario

Benefits

Versions

	Nominal diameter	Connection	Flow coefficient Kvs	Part no.

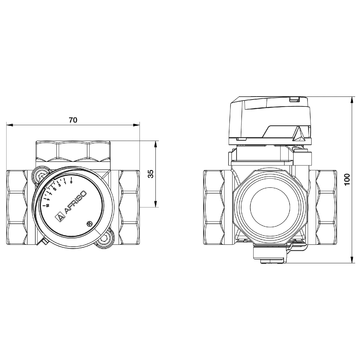

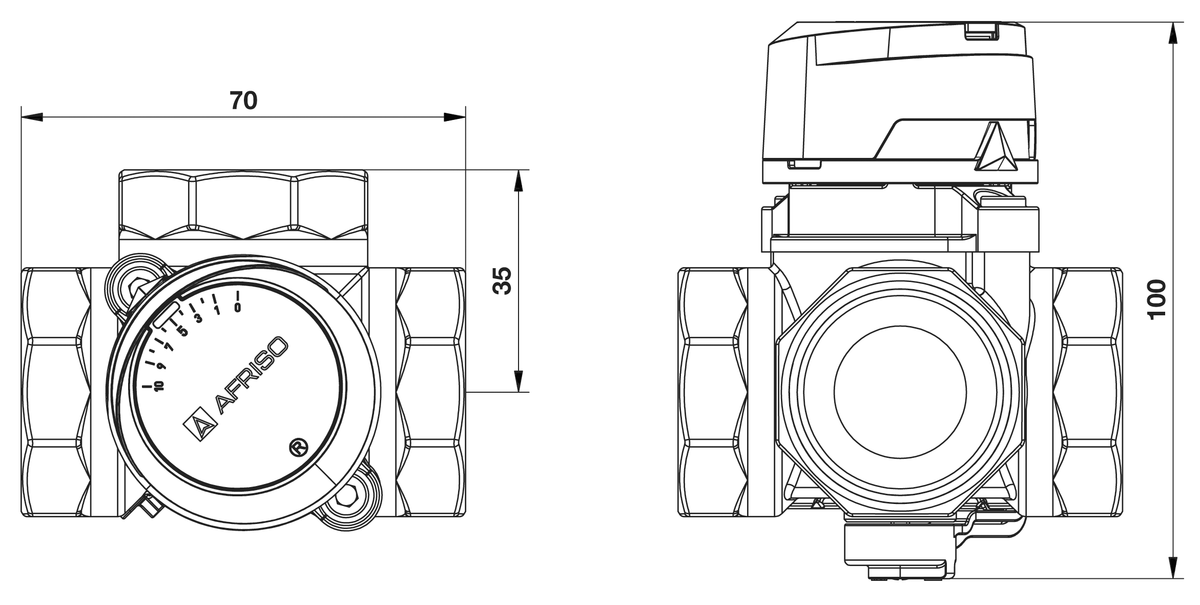

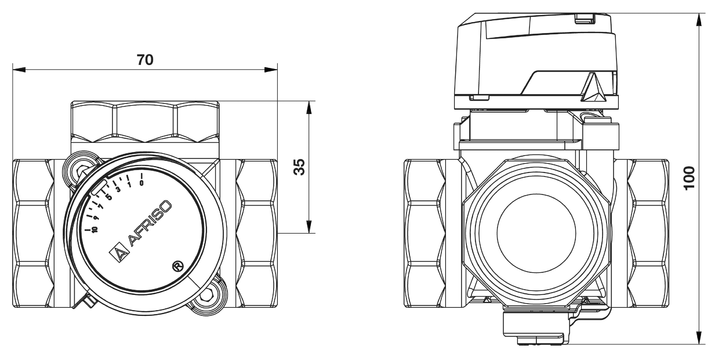

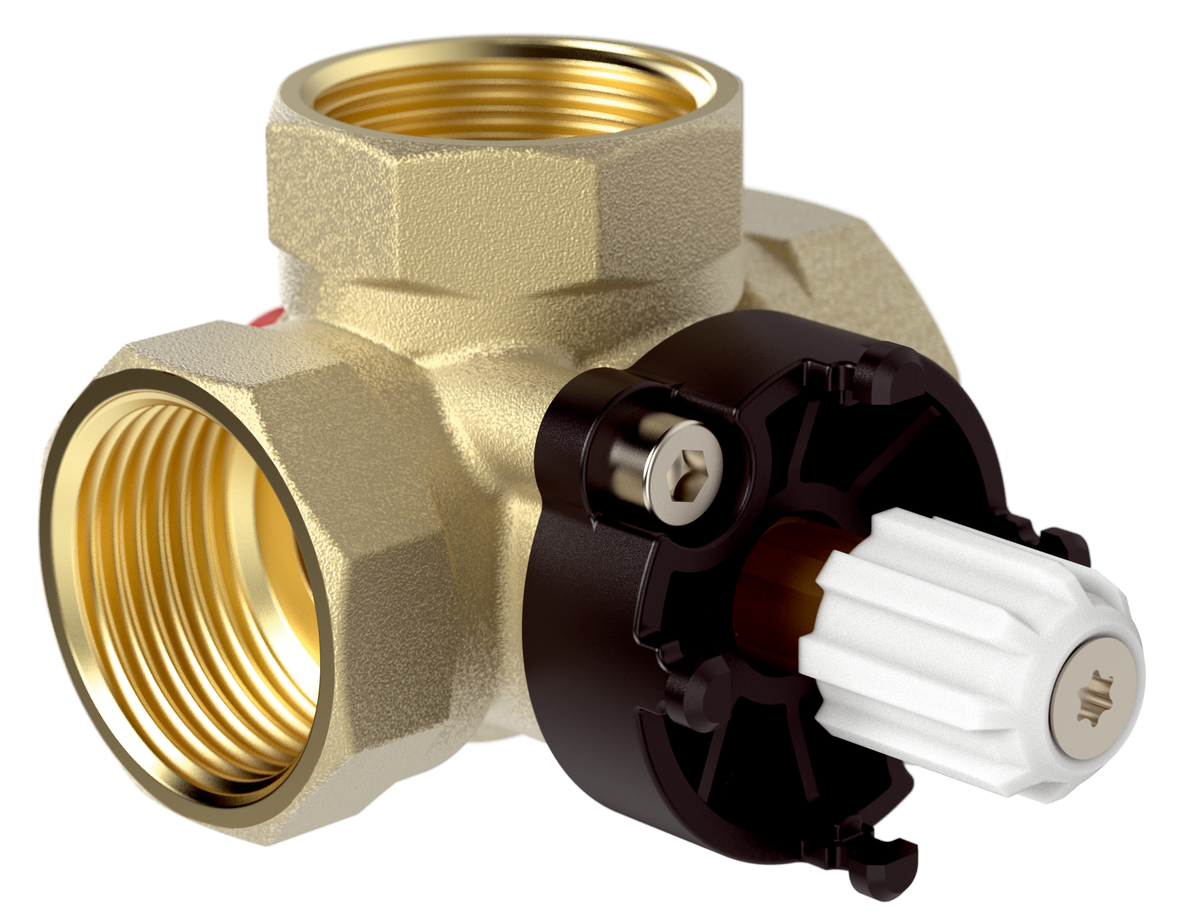

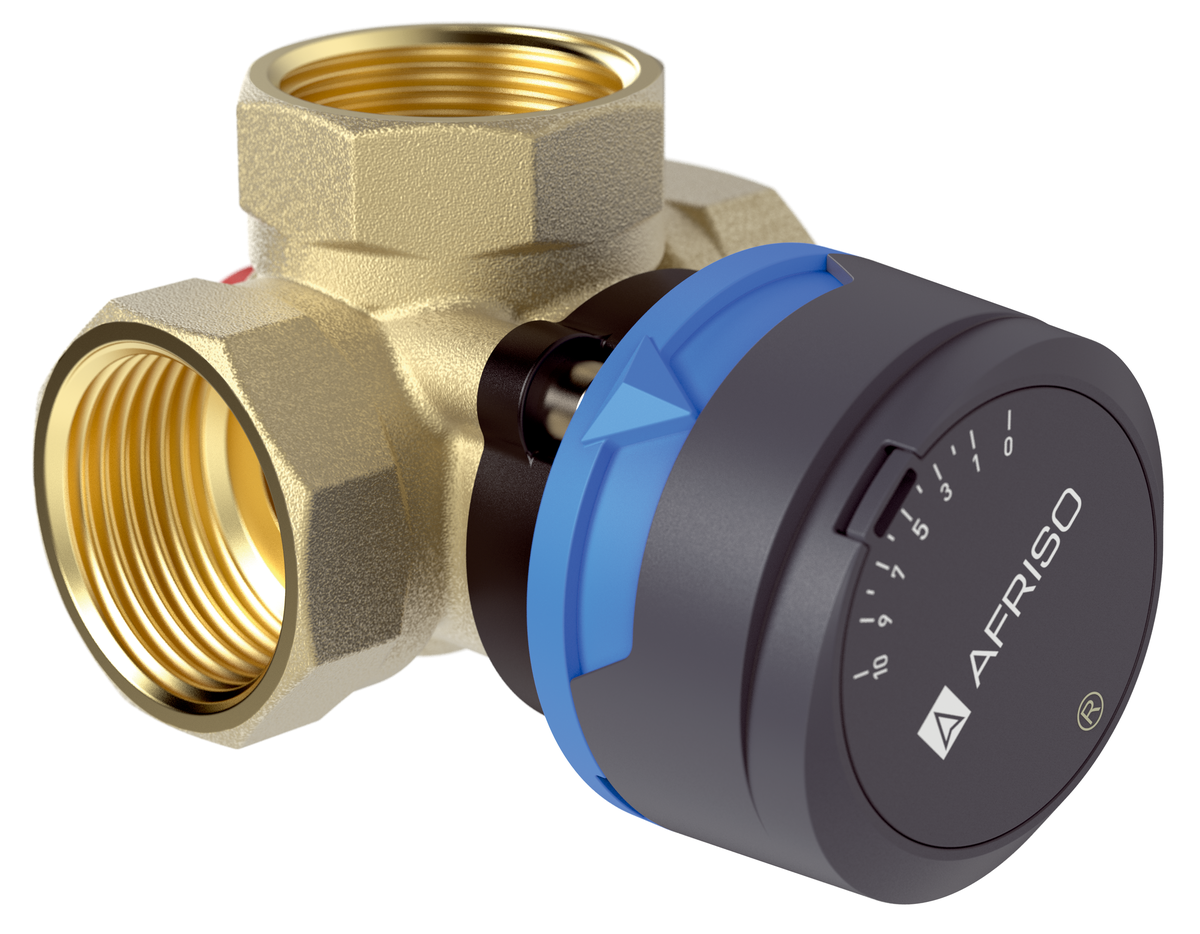

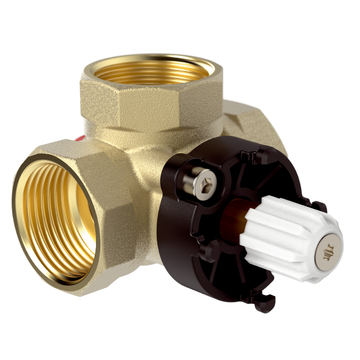

3-way mixing valve ARV 382 Vario	DN 20	Rp¾	3.5/9 m³/h	1338220

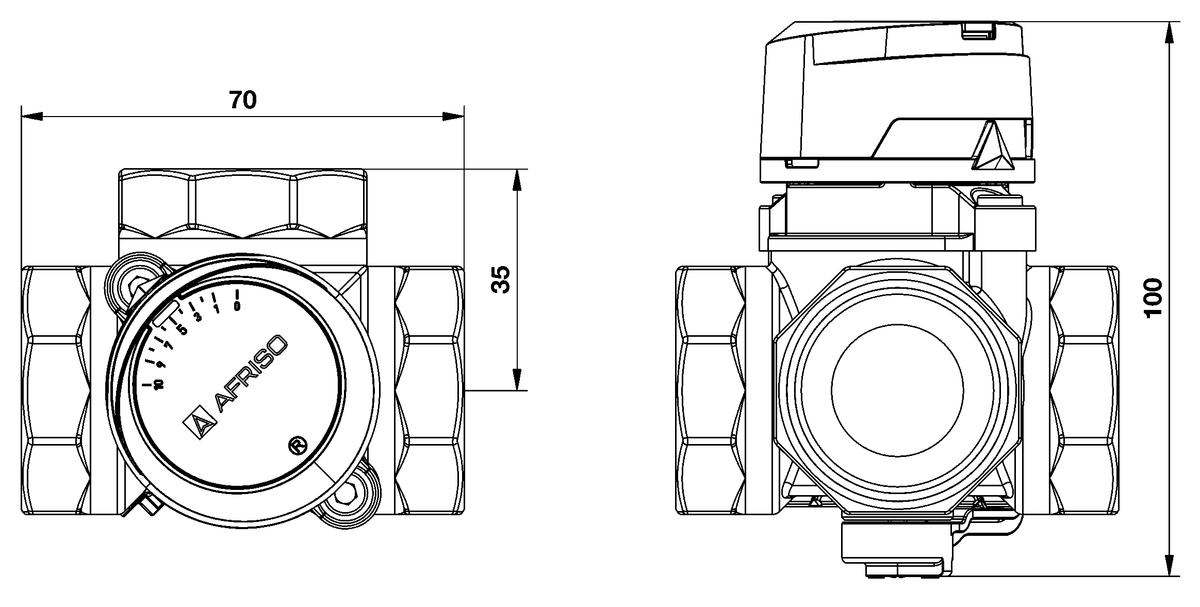

3-way mixing valve ARV 384 Vario	DN 25	Rp1	4.5/12 m³/h	1338420

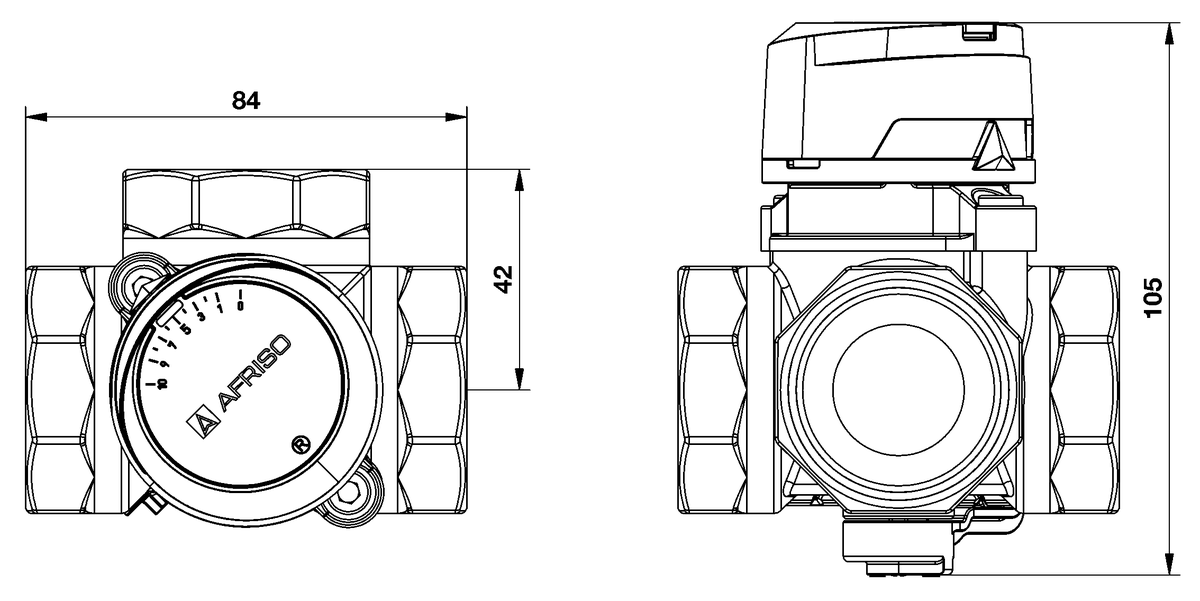

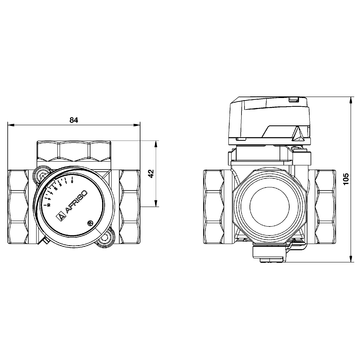

3-way mixing valve ARV 385 Vario	DN 32	Rp1¼	7.5/19 m³/h	1338520

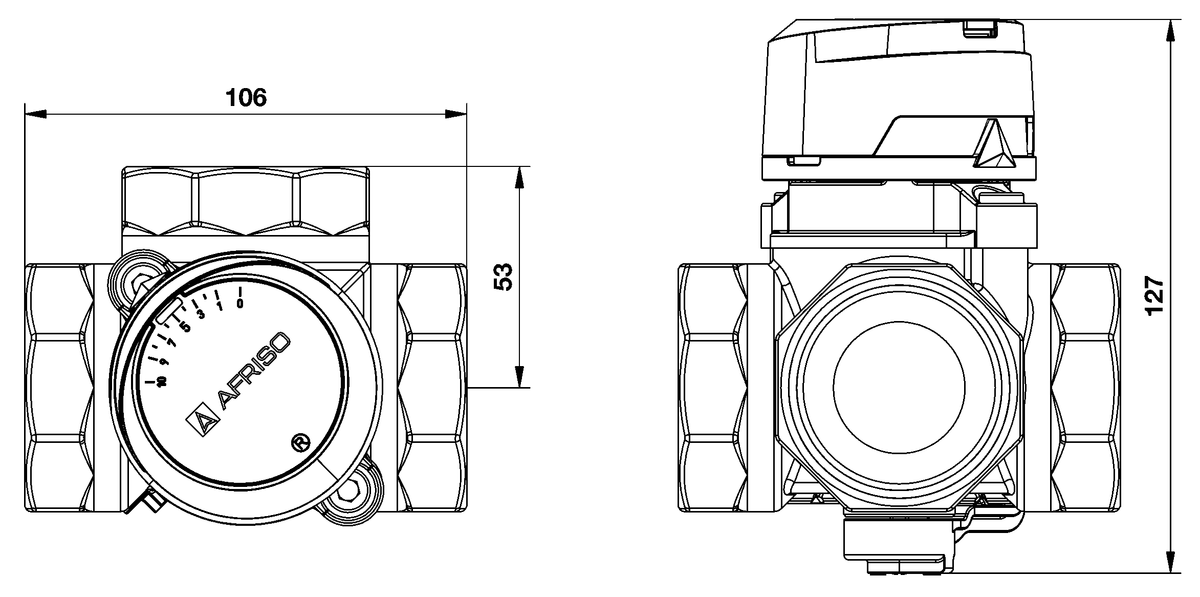

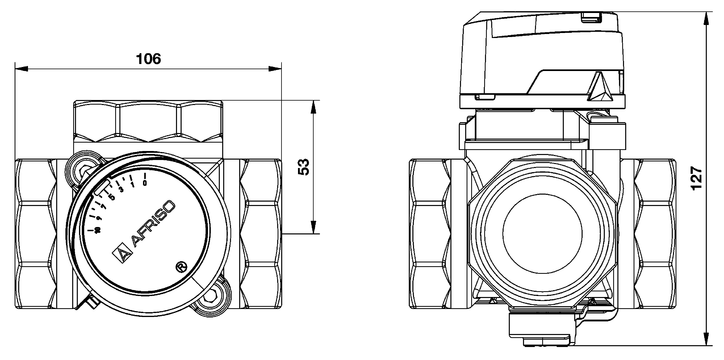

3-way mixing valve ARV 386 Vario	DN 40	Rp1½	14/36 m³/h	1338620

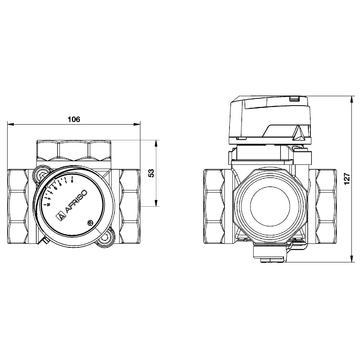

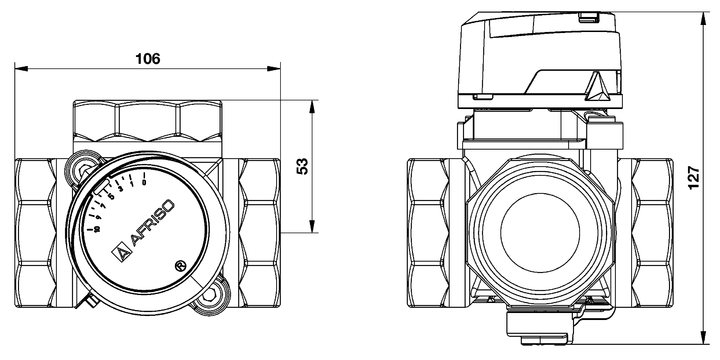

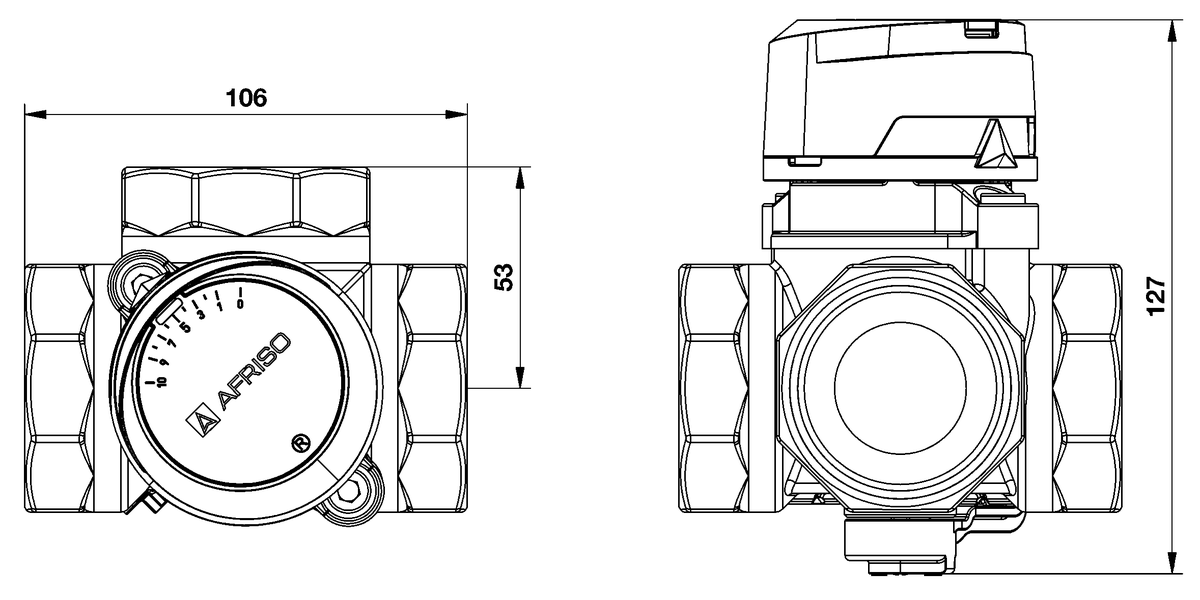

3-way mixing valve ARV 387 Vario	DN 50	Rp2	17/50 m³/h	1338720

Blue part no. = in-stock items

	Description	Format	Language	Download / Link
Data sheet 3-way mixing valves ARV Vario	Data sheet	PDF

Angle of rotation

90°

Operating temperature range

Medium:

5/95 °C

Nominal pressure

Max. 10 bar

Differential pressure

Max. 1 bar

Flow rate

See ordering table

Leak rate (∆p = 100 kPa)

DN 20 – DN 25:

< 0.2 % Kvs

DN 32 – DN 50:

< 0.7 % Kvs

Material

Housing:

Brass (CW617N)

O rings:

EPDM
